8969-0-05-21-00-00-03-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 8969-0-05-21-00-00-03-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 8969-0-05-21-00-00-03-0
- Description:
- CONN PC PIN
In Stock
845 pcs On sales
$0.87
Product Parameter
- Flange Diameter
- 0.021" (0.53mm)
- Contact Material
- Brass Alloy
- Series
- 8969
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.200" (5.08mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.140" (3.56mm)
- Part Status
- Active
- Length - Below Flange
- -
- Termination
- Press-Fit, Square
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.023" (0.58mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.018" (0.46mm) Dia
- Contact Finish
- Gold
- Pin Size - Below Flange
- 0.028" (0.71mm) Dia
- Terminal Style
- Wire
- Contact Finish Thickness
- 20.0µin (0.51µm)
- Board Thickness
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
8969-0-05-21-00-00-03-0 Relevant information
8969-0-05-01-00-00-03-0
CONN PC PIN

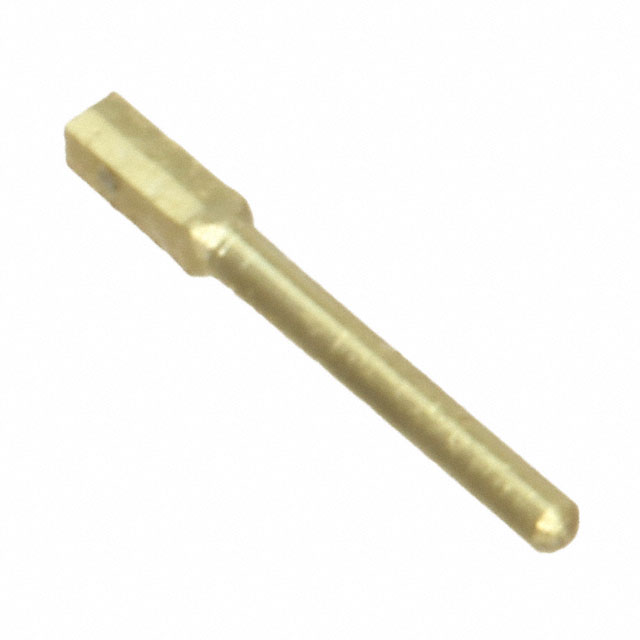

8969-0-05-15-00-00-03-0
