5059-0-15-15-34-14-04-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 5059-0-15-15-34-14-04-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 5059-0-15-15-34-14-04-0
- Description:
- CONN PIN RCPT
In Stock
0 pcs On sales
$1.12
Product Parameter
- Insertion Force
- -
- Series
- 5059
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.655" (16.64mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.064" (1.63mm)
- Tail Type
- Standard Tail
- Accepts Pin Diameter
- 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Press-Fit
- Mounting Hole Diameter
- 0.090" (2.29mm)
- Socket Depth
- 0.132" (3.35mm)
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Tail Diameter
- 0.030" (0.76mm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.102" (2.59mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
5059-0-15-15-34-14-04-0 Relevant information
5059-0-15-15-34-14-04-0
CONN PIN RCPT
5059-0-15-15-34-27-04-0
CONN RECEPT PIN .032-.046" .125"
5059-0-15-80-34-14-04-0
CONN PIN RCPT
5059-0-15-80-34-27-04-0
CONN PIN RCPT
5059-0-15-80-34-80-04-0
CONN PIN RCPT

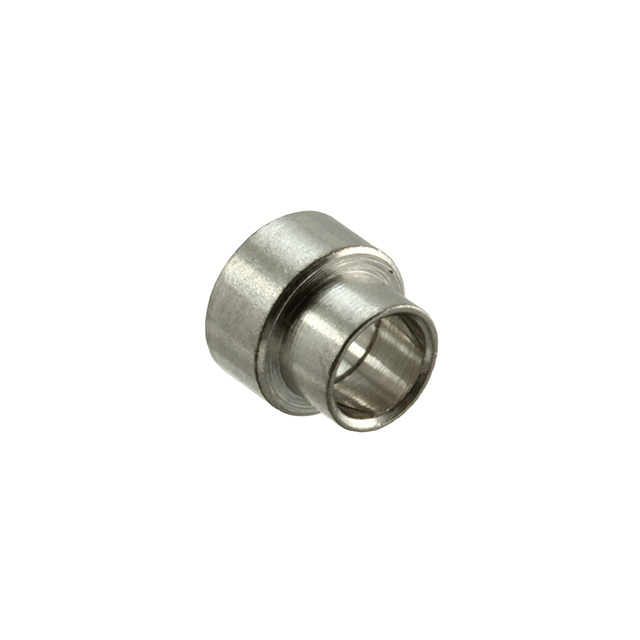

5059-2
