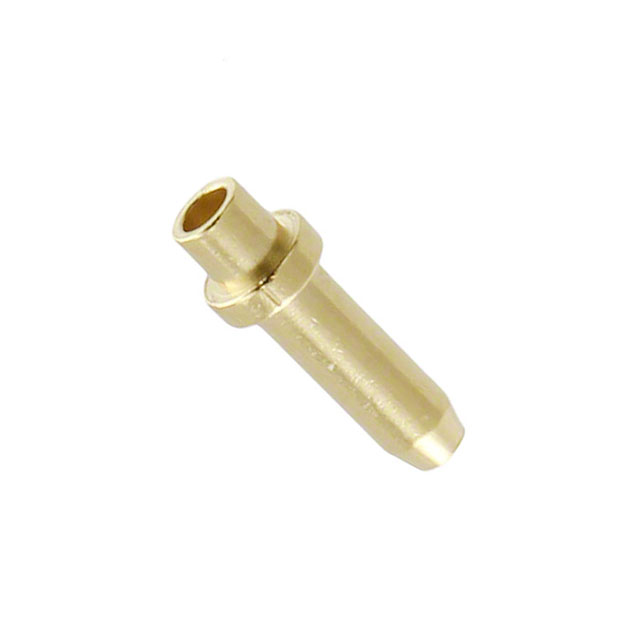

3144-2-00-15-00-00-08-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 3144-2-00-15-00-00-08-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 3144-2-00-15-00-00-08-0
- Description:
- CONN PC PIN CIRC 0.062DIA GOLD
In Stock
3215 pcs On sales
$0.28
Product Parameter
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.188" (4.78mm)
- Part Status
- Active
- Length - Below Flange
- 0.084" (2.13mm)
- Termination
- Swage
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.067" (1.70mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.062" (1.57mm) Dia
- Contact Finish
- Gold
- Pin Size - Below Flange
- -
- Terminal Style
- Single End
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Board Thickness
- 0.062" (1.57mm)
- Flange Diameter
- 0.094" (2.39mm)
- Contact Material
- Brass Alloy
- Series
- 3144
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.297" (7.54mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
3144-2-00-15-00-00-08-0 Relevant information
3144

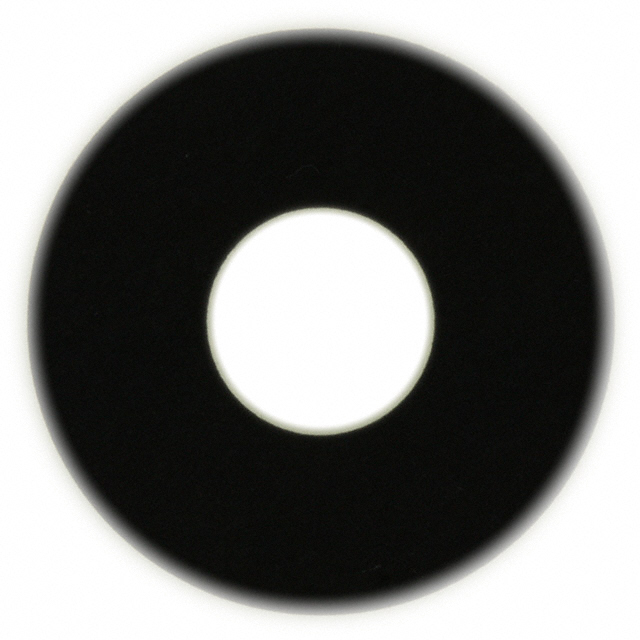

WASHER FLAT 3/8 FIBRE
3144-1-00-01-00-00-08-0

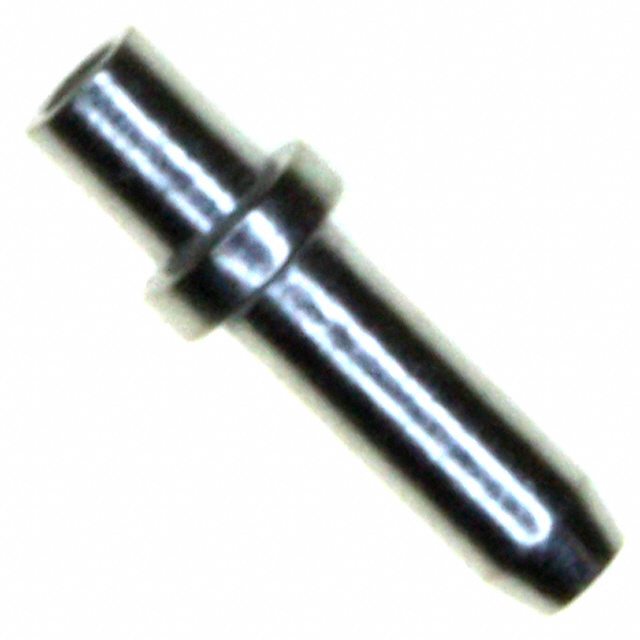

CONN PC PIN CIRC .062DIA TINLEAD
