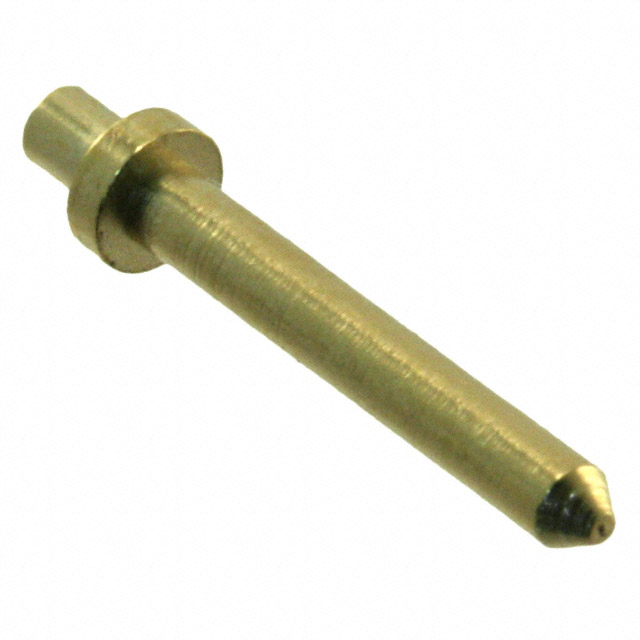

3103-2-00-21-00-00-08-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 3103-2-00-21-00-00-08-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 3103-2-00-21-00-00-08-0
- Description:
- CONN PC PIN CIRC 0.040DIA GOLD
In Stock
1754 pcs On sales
$0.29
Product Parameter
- Contact Finish
- Gold
- Pin Size - Below Flange
- -
- Terminal Style
- Single End
- Contact Finish Thickness
- 20.0µin (0.51µm)
- Board Thickness
- 0.062" (1.57mm)
- Flange Diameter
- 0.070" (1.77mm)
- Contact Material
- Brass Alloy
- Series
- 3103
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.402" (10.20mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.300" (7.62mm)
- Part Status
- Active
- Length - Below Flange
- 0.082" (2.08mm)
- Termination
- Swage
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.043" (1.09mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.040" (1.02mm) Dia
