0660-0-15-15-30-27-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0660-0-15-15-30-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0660-0-15-15-30-27-10-0
- Description:

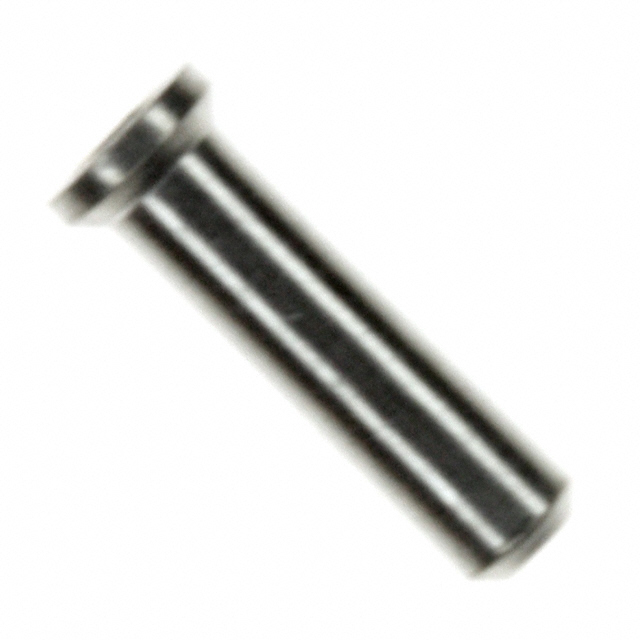

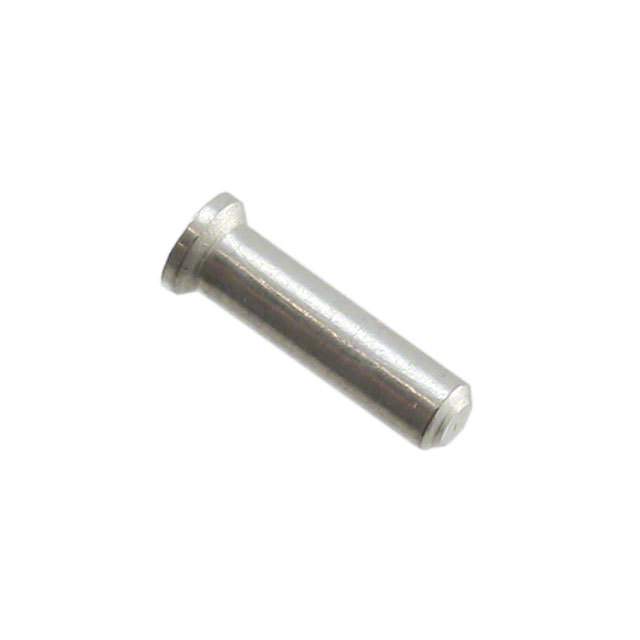

- CONN PIN RCPT .015-.025 SOLDER
In Stock
28782 pcs On sales
$0.32
Product Parameter
- Features
- -
- Length - Overall
- 0.200" (5.08mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.043" (1.09mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.051" (1.30mm)
- Socket Depth
- 0.180" (4.57mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.068" (1.73mm)
- Insertion Force
- -
- Series
- 660
- Contact Material
- Beryllium Copper
