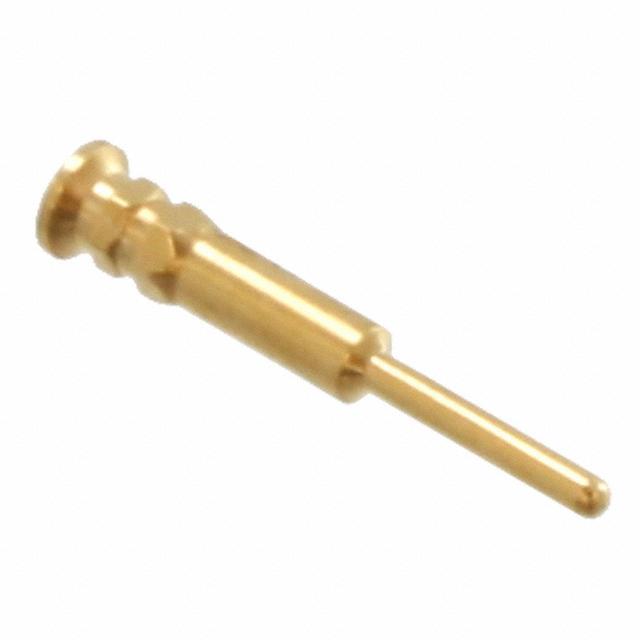

0542-0-00-15-00-00-03-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 0542-0-00-15-00-00-03-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0542-0-00-15-00-00-03-0
- Description:
- CONN PC PIN CIRC 0.020DIA GOLD
In Stock
1023 pcs On sales
$0.24
Product Parameter
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.020" (0.51mm) Dia
- Contact Finish
- Gold
- Pin Size - Below Flange
- -
- Terminal Style
- Single End
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Board Thickness
- -
- Flange Diameter
- 0.055" (1.40mm)
- Contact Material
- Brass Alloy
- Series
- 0542
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.295" (7.49mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.279" (7.09mm)
- Part Status
- Active
- Length - Below Flange
- -
- Termination
- Press-Fit, Hex
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.039" (0.99mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
0542-0-00-15-00-00-03-0 Relevant information
0542-0-00-01-00-00-03-0
CONN PC PIN CIRC .020DIA TINLEAD
0542-0-00-15-00-00-03-0
CONN PC PIN CIRC 0.020DIA GOLD
0542-0-00-21-00-00-03-0
CONN PC PIN CIRC 0.020DIA GOLD
0542-0-00-34-00-00-03-0
CONN PC PIN CIRC 0.020DIA GOLD
0542-0-00-80-00-00-03-0
CONN PIN RCPT

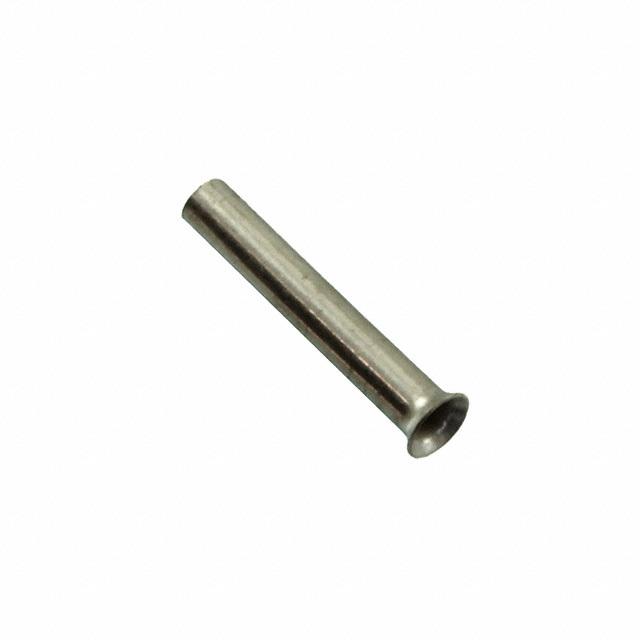

0542500000
