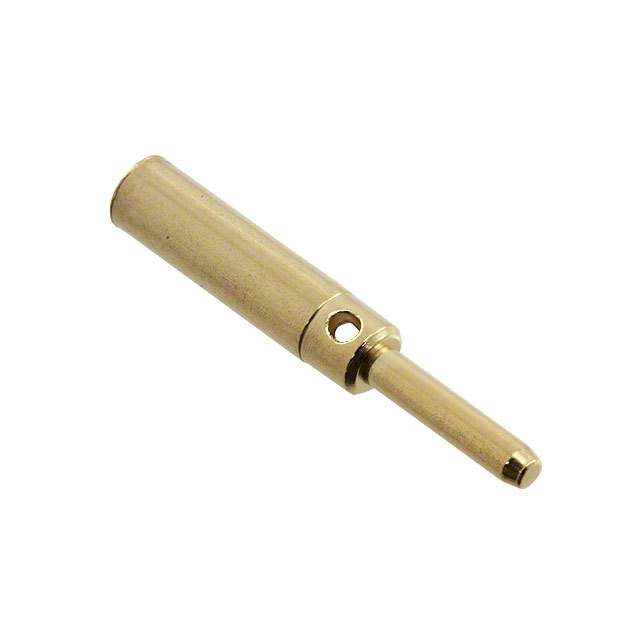

0491-0-19-15-07-14-04-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0491-0-19-15-07-14-04-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0491-0-19-15-07-14-04-0
- Description:
- CONN PIN RCPT
In Stock
0 pcs On sales
$1.82
Product Parameter
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.157" (3.99mm)
- Insertion Force
- -
- Series
- 0491
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 1.000" (25.40mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.107" (2.72mm)
- Tail Type
- Standard Tail
- Accepts Pin Diameter
- 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Stackable
- Mounting Hole Diameter
- -
- Socket Depth
- 0.480" (12.19mm)
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Tail Diameter
- 0.080" (2.03mm)
