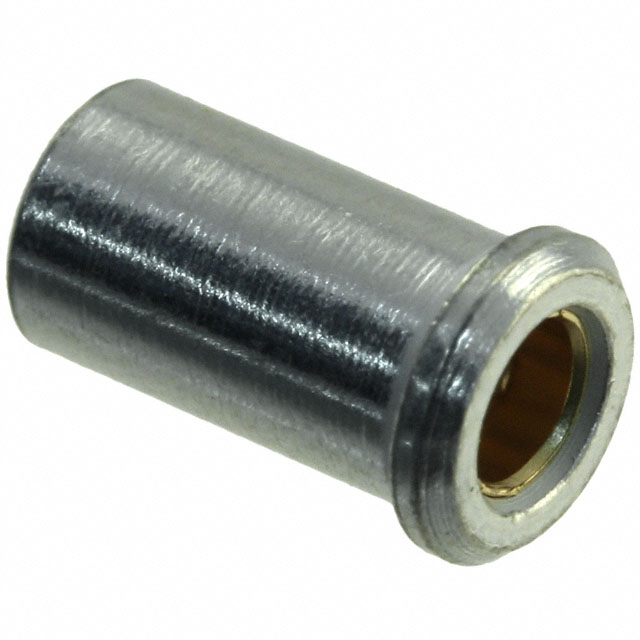

0391-0-15-15-07-27-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0391-0-15-15-07-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0391-0-15-15-07-27-10-0
- Description:
- CONN PIN RCPT .065-.082 SOLDER
In Stock
11944 pcs On sales
$1.04
Product Parameter
- Insertion Force
- -
- Series
- 391
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.309" (7.85mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.107" (2.72mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.159" (4.04mm)
- Socket Depth
- 0.260" (6.60mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.189" (4.80mm)
