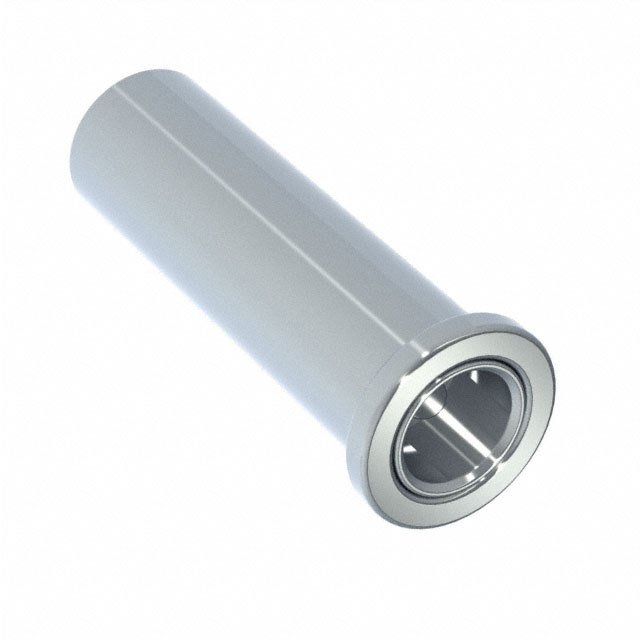

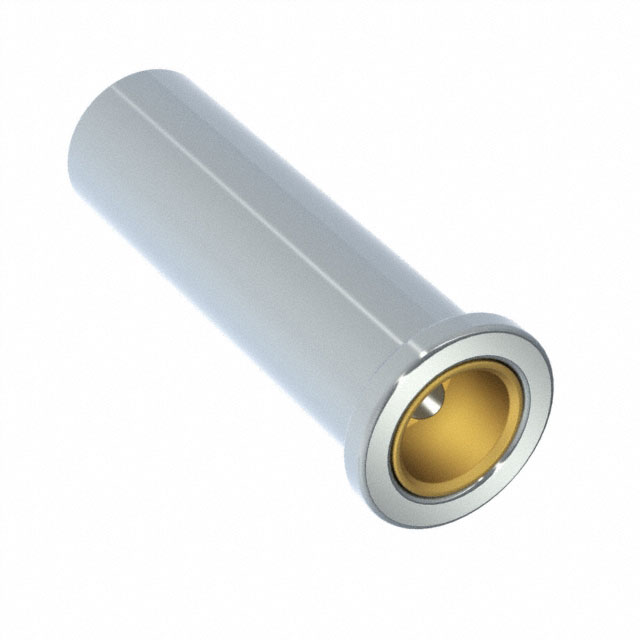

0339-0-15-80-15-27-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0339-0-15-80-15-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0339-0-15-80-15-27-10-0
- Description:
- CONN PIN RCPT .020-.032 SOLDER
In Stock
13875 pcs On sales
$0.46
Product Parameter
- Series
- 0339
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.190" (4.83mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.047" (1.19mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.057" (1.45mm)
- Socket Depth
- 0.167" (4.24mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.068" (1.73mm)
- Insertion Force
- -
