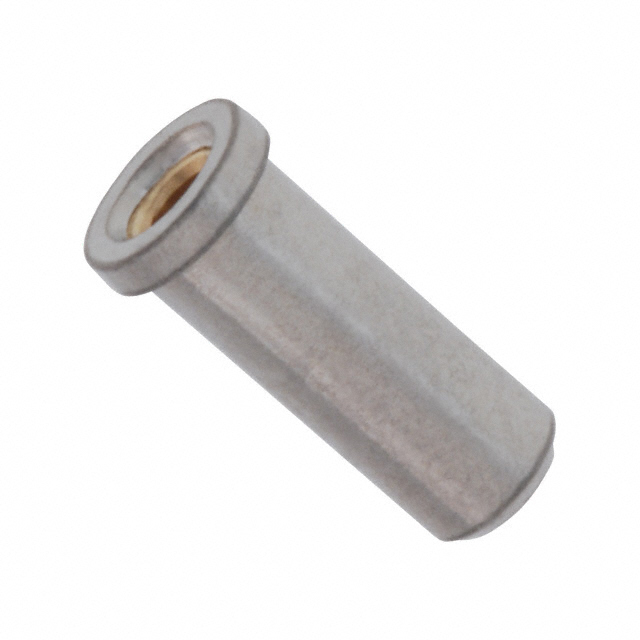

0294-0-15-15-06-27-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0294-0-15-15-06-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0294-0-15-15-06-27-10-0
- Description:
- CONN PIN RCPT .022-.032 SOLDER
In Stock
40022 pcs On sales
$0.46
Product Parameter
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.090" (2.29mm)
- Insertion Force
- -
- Series
- 294
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.206" (5.23mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.051" (1.30mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.076" (1.93mm)
- Socket Depth
- 0.185" (4.70mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
