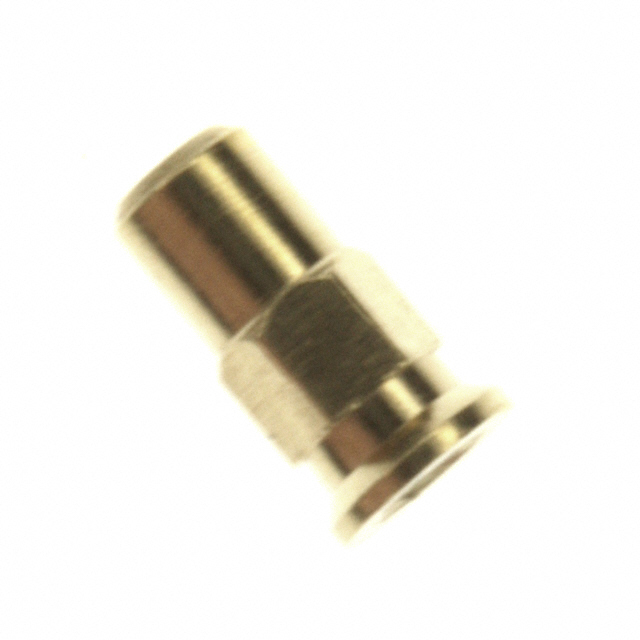

0291-0-15-01-16-01-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0291-0-15-01-16-01-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0291-0-15-01-16-01-10-0
- Description:
- CONN PIN RCPT .022-.034 HEX
In Stock
0 pcs On sales
$0.64
Product Parameter
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Press-Fit, Hex
- Mounting Hole Diameter
- 0.067" (1.70mm)
- Socket Depth
- 0.120" (3.05mm)
- Accepts Square Pin Size
- 0.025" (0.64mm)
- Tail Diameter
- -
- Contact Finish Thickness
- 200.0µin (5.08µm)
- Contact Finish
- Tin-Lead
- Board Thickness
- -
- Flange Diameter
- 0.079" (2.01mm)
- Insertion Force
- -
- Series
- 291
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.145" (3.68mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.051" (1.30mm)
