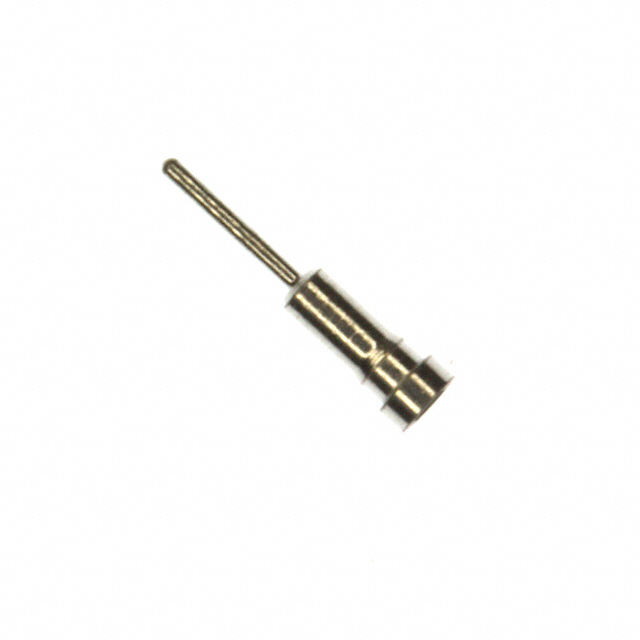

0134-0-15-01-32-02-04-0

Terminals - PC Pin Receptacles, Socket Connectors

Manufacturer No:: 0134-0-15-01-32-02-04-0
Manufacture:: Mill-Max Manufacturing Corp.
Datasheet:: 0134-0-15-01-32-02-04-0
Description:: CONN PIN RCPT .015-.025 PRESSFIT

In Stock

0 pcs On sales

$0.64

Product Parameter

Insertion Force: -

Series: 134

Contact Material: Beryllium Copper

Features: -

Length - Overall: 0.335" (8.50mm)

Packaging: Bulk

Pin Hole Diameter: 0.043" (1.09mm)

Tail Type: Standard Tail

Accepts Pin Diameter: 0.015" ~ 0.025" (0.38mm ~ 0.64mm)

Part Status: Active

Operating Temperature: -55°C ~ 125°C

Termination: Press-Fit

Mounting Hole Diameter: 0.057" (1.45mm)

Socket Depth: 0.150" (3.81mm)

Accepts Square Pin Size: -

Tail Diameter: 0.020" (0.51mm)

Contact Finish Thickness: 100.0µin (2.54µm)

Contact Finish: Tin-Lead

Board Thickness: -

Flange Diameter: 0.072" (1.83mm)
