MCMN2012-TP
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- MCMN2012-TP
- Manufacture:
- Micro Commercial Co
- Package:
- 6-WDFN Exposed Pad
- Datasheet:
- MCMN2012-TP
- Description:
- MOSFET N-CH 20V 12A DFN202
In Stock
5882 pcs On sales
$0
Product Parameter
- Vgs (Max)
- ±10V
- Drain to Source Voltage (Vdss)
- 20V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 1800pF @ 4V
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 12A (Ta)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 1.2V, 4.5V
- Mounting Type
- Surface Mount
- Package / Case
- 6-WDFN Exposed Pad
- Vgs(th) (Max) @ Id
- 1V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 11mOhm @ 9.7A, 4.5V
- Series
- -
- Power Dissipation (Max)
- -
- FET Type
- N-Channel
- Supplier Device Package
- DFN2020-6J
- Packaging
- Digi-Reel®
- Gate Charge (Qg) (Max) @ Vgs
- 32nC @ 5V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MCMN2012-TP Relevant information
MCMN2012-TP
MOSFET N-CH 20V 12A DFN202

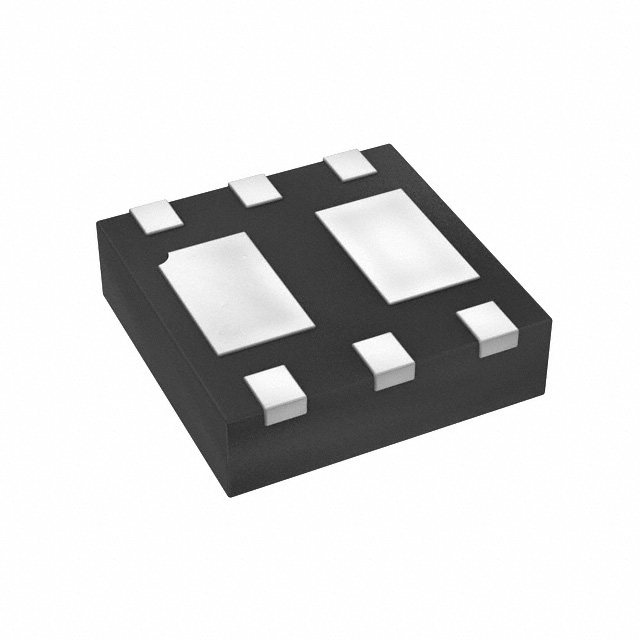

MCMNP517-TP
