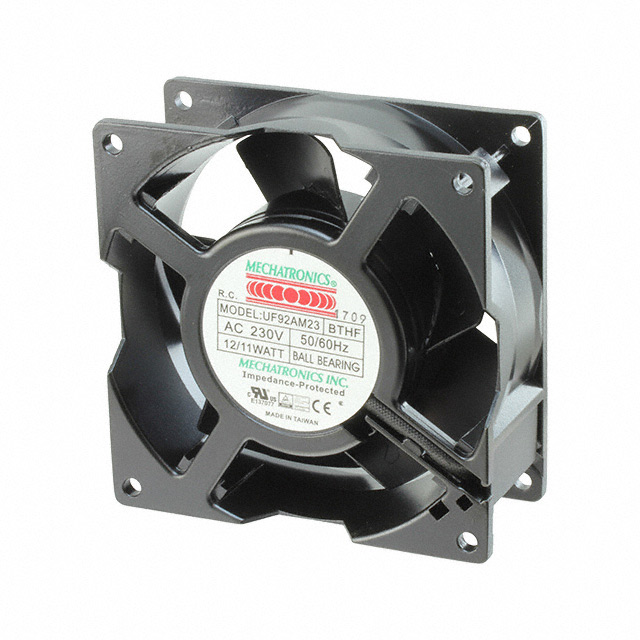

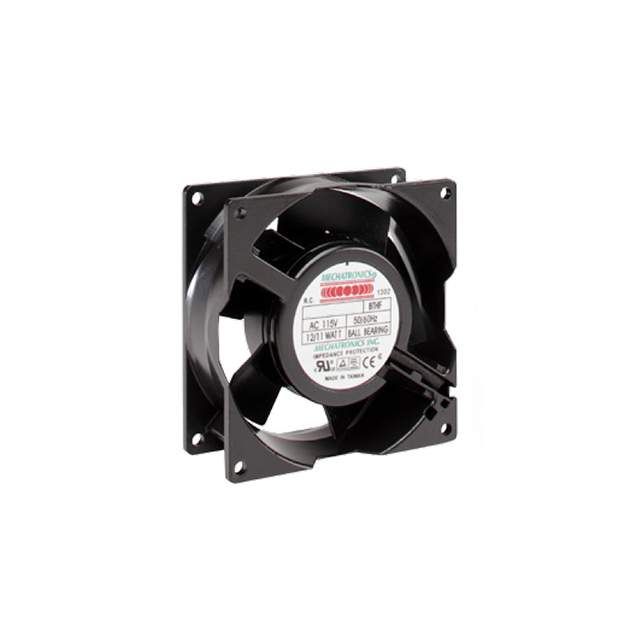

UF92AM12/23-BWHR
AC Fans
- Manufacturer No:
- UF92AM12/23-BWHR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- UF92AM12/23-BWHR
- Description:
- FAN 92X38MM 115/230V HIGH TEMP
In Stock
0 pcs On sales
$30.16
Product Parameter
- Noise
- 42.0 dB(A)
- Voltage Range
- -
- Width
- 38.00mm
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Series
- UF92AM
- Voltage - Rated
- 115/230VAC
- Weight
- 0.948 lb (430.01 g)
- Material - Blade
- Metal
- Air Flow
- 51.0 CFM (1.43m³/min)
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 92.5mm L x 92.5mm H
- Features
- Dual Voltage
- Ingress Protection
- -
- Approvals
- CE, cUL, TUV, UL
- Current Rating (Amps)
- 0.060A/0.120A
- Part Status
- Active
- Operating Temperature
- -40 ~ 194°F (-40 ~ 90°C)
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 3200 RPM
- Power (Watts)
- 11.00W
