UF360AAA23-H1C4A
AC Fans
- Manufacturer No:
- UF360AAA23-H1C4A
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- UF360AAA23-H1C4A
- Description:

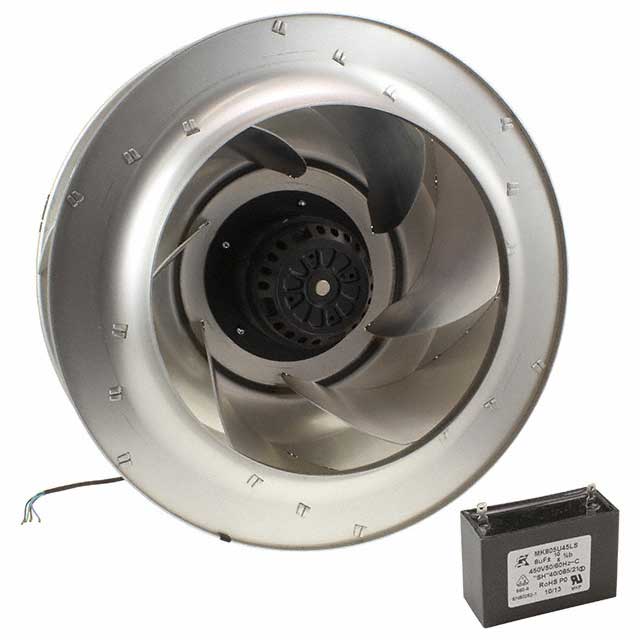

- IMPELLER 360X167MM 230VAC
In Stock
0 pcs On sales
$221.55
Product Parameter
- Width
- 167.3mm
- Static Pressure
- 2.200 in H2O (548.0 Pa)
- Series
- UF360AAA
- Voltage - Rated
- 230VAC
- Weight
- 11 lbs (5 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 1645.0 CFM (46.06m³/min)
- Material - Blade
- Aluminum
- Fan Type
- Motorized Impellers
- Material - Frame
- Aluminum
- Features
- Permanent Split Capacitor Motor
- Size / Dimension
- Round - 360mm Dia
- Approvals
- CE, cUL, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 1.13A
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 1600 RPM
- Power (Watts)
- 265W
- Noise
- 70.0 dB(A)
- Voltage Range
- -
