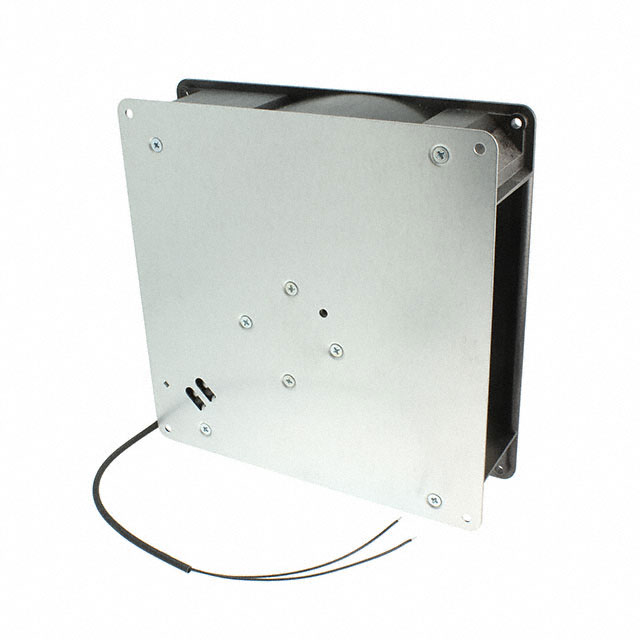

UF16FC12-BTHR
AC Fans
- Manufacturer No:
- UF16FC12-BTHR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- UF16FC12-BTHR
- Description:
- FAN AXIAL 160X62MM 115VAC
In Stock
47 pcs On sales
$63.83
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Size / Dimension
- Square - 160mm L x 160mm H
- Approvals
- CE, cUL, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.340A
- Termination
- 2 Terminals
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3400 RPM
- Power (Watts)
- 41.00W
- Noise
- 56.0 dB(A)
- Voltage Range
- -
- Width
- 62.00mm
- Static Pressure
- 0.720 in H2O (179.3 Pa)
- Series
- UF16FC
- Voltage - Rated
- 115VAC
- Weight
- 2.8 lbs (1.3 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 265.0 CFM (7.42m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
