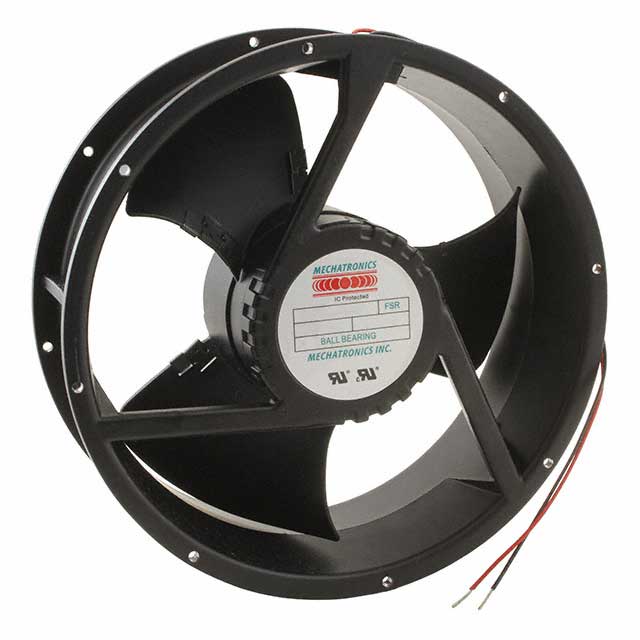

MM2589H48B-FSR
DC Brushless Fans (BLDC)
- Manufacturer No:
- MM2589H48B-FSR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- MM2589H48B-FSR
- Description:
- FAN AXIAL 255X89MM 48VDC
In Stock
3 pcs On sales
$195.68
Product Parameter
- Part Status
- Obsolete
- Operating Temperature
- -
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 3000 RPM
- Voltage Range
- -
- Noise
- 60.0 dB(A)
- Static Pressure
- 1.100 in H2O (274.0 Pa)
- Width
- 89.00mm
- Voltage - Rated
- 48VDC
- Series
- MM2589
- Lifetime @ Temp.
- -
- Weight
- 3.5 lbs (1.6 kg)
- Material - Blade
- Magnesium Alloy
- Air Flow
- 1030.0 CFM (28.84m³/min)
- Material - Frame
- Magnesium Alloy
- Fan Type
- Tubeaxial
- Size / Dimension
- Round - 255mm Dia
- Features
- Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- CSA, cULus, TUV, UL
- Current Rating (Amps)
- 2.70A
