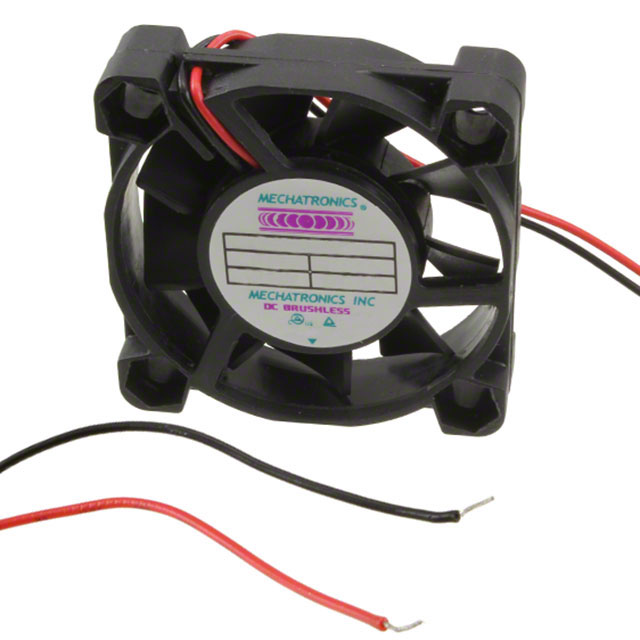

G4010E12B-RSR
DC Brushless Fans (BLDC)
- Manufacturer No:
- G4010E12B-RSR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- G4010E12B-RSR
- Description:
- FAN AXIAL 40X10MM 12VDC
In Stock
0 pcs On sales
$8.25
Product Parameter
- Width
- 10.30mm
- Voltage - Rated
- 12VDC
- Series
- G4010
- Lifetime @ Temp.
- -
- Weight
- 0.026 lb (11.79 g)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Air Flow
- 11.0 CFM (0.308m³/min)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 40mm L x 40mm H
- Features
- Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- CE, cUL, TUV, UL
- Current Rating (Amps)
- 0.350A
- Part Status
- Active
- Operating Temperature
- -
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 10000 RPM
- Voltage Range
- -
- Noise
- 41.0 dB(A)
- Static Pressure
- 0.390 in H2O (97.1 Pa)
