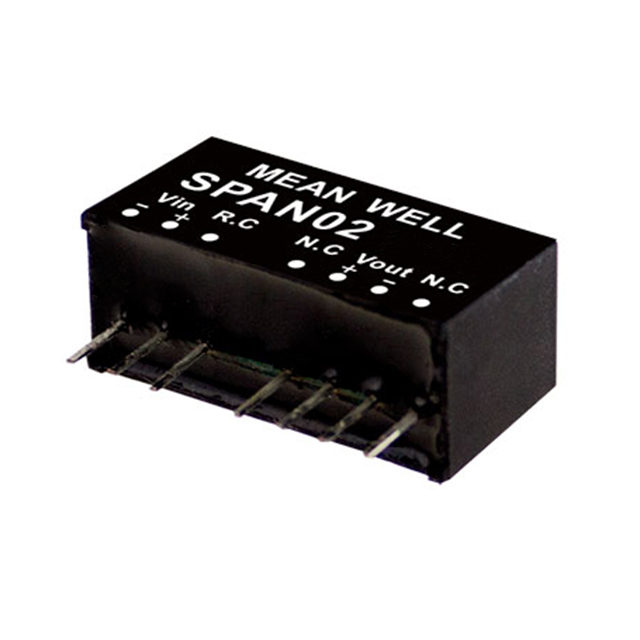

SPAN02A-03
DC DC Converters
- Manufacturer No:
- SPAN02A-03
- Manufacture:
- MEAN WELL USA Inc.
- Package:
- 8-SIP Module, 7 Leads
- Datasheet:
- SPAN02A-03
- Description:
- DC DC CONVERTER 3.3V 1.7W
In Stock
34 pcs On sales
$8.35
Product Parameter
- Part Status
- Active
- Operating Temperature
- -40°C ~ 90°C (With Derating)
- Applications
- ITE (Commercial)
- Voltage - Input (Max)
- 18V
- Mounting Type
- Through Hole
- Voltage - Input (Min)
- 9V
- Power (Watts)
- 1.7W
- Current - Output (Max)
- 500mA
- Package / Case
- 8-SIP Module, 7 Leads
- Supplier Device Package
- -
- Size / Dimension
- 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
- Number of Outputs
- 1
- Type
- Isolated Module
- Voltage - Output 1
- 3.3V
- Series
- SPAN02 (2W)
- Voltage - Output 2
- -
- Features
- Remote On/Off, OCP, SCP, UVLO
- Voltage - Output 3
- -
- Packaging
- -
- Voltage - Output 4
- -
- Efficiency
- 76%
- Voltage - Isolation
- 1500V
