LDD-1000H
LED Drivers
- Manufacturer No:
- LDD-1000H
- Manufacture:
- MEAN WELL USA Inc.
- Package:
- 24-DIP Module, 9 Leads
- Datasheet:
- LDD-1000H
- Description:
- LED DRIVER CC BUCK 2-52V 1A
In Stock
3405 pcs On sales
$5.89
Product Parameter
- Type
- Constant Current
- Number of Outputs
- 1
- Series
- LDD-H
- Operating Temperature
- -40°C ~ 85°C
- Dimming
- PWM
- Voltage - Input (Max)
- 56V
- Features
- Remote On/Off, OTP, SCP
- Voltage - Input (Min)
- 9V
- Topology
- Buck
- Current - Output (Max)
- 1A
- Approvals
- CE
- Efficiency
- 97%
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- 24-DIP Module, 9 Leads
- Size / Dimension
- 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
- Voltage - Output
- 2 ~ 52V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
LDD-1000H Relevant information
LDD-1000H
LED DRIVER CC BUCK 2-52V 1A

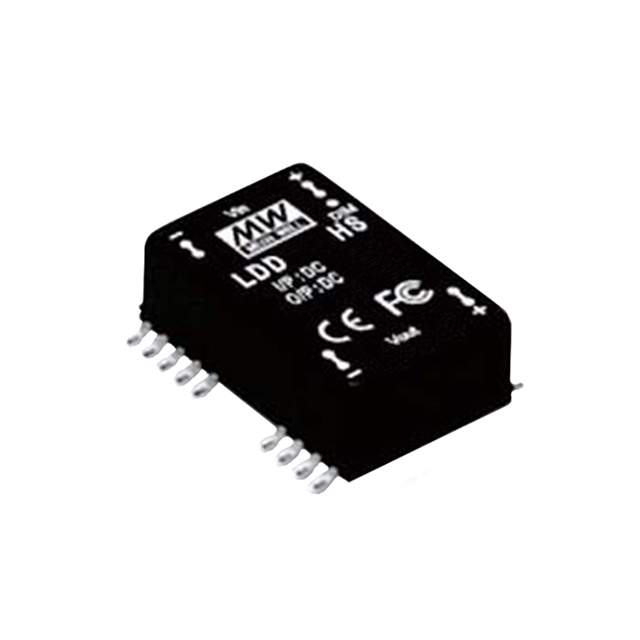

LDD-1000HS
LED DRIVER CC BUCK 2-52V 1A

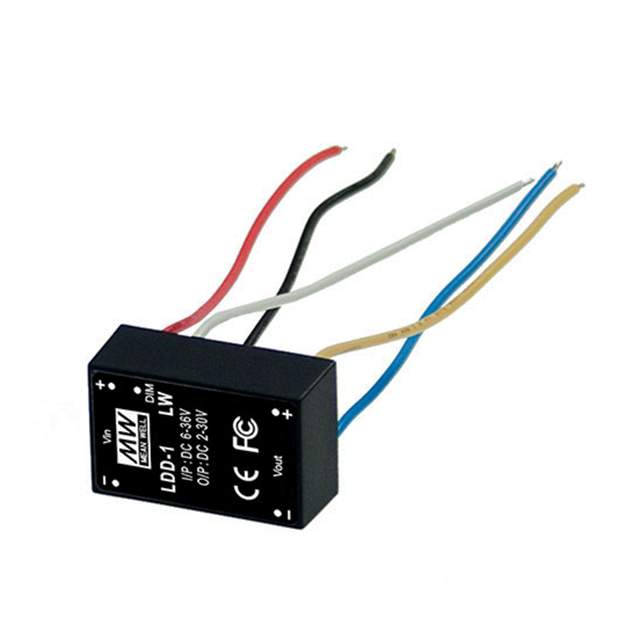

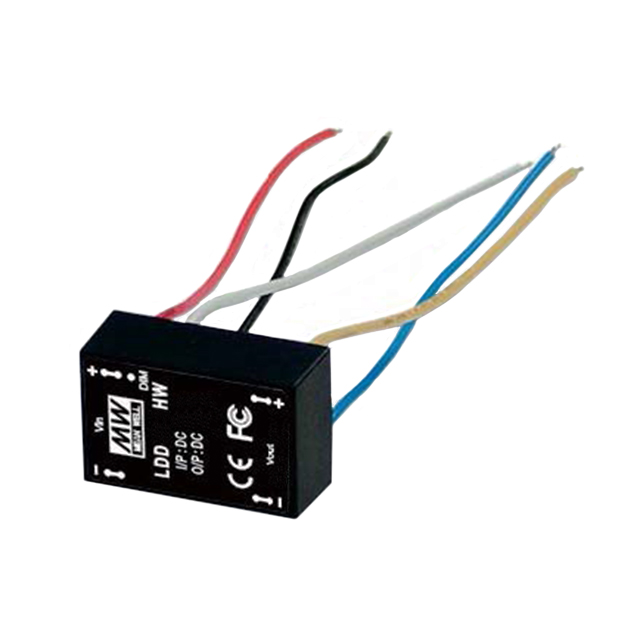

LDD-1000HW
LED DRIVER CC BUCK 2-52V 1A

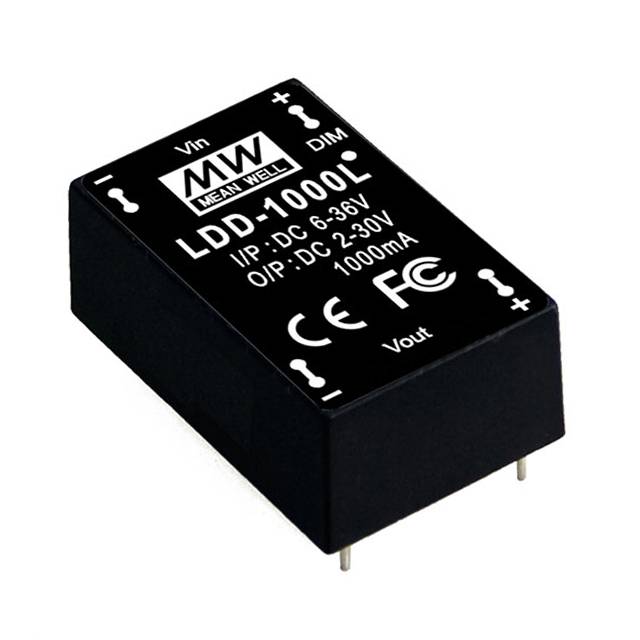

LDD-1000L
LED DRIVER CC BUCK 2-30V 1A

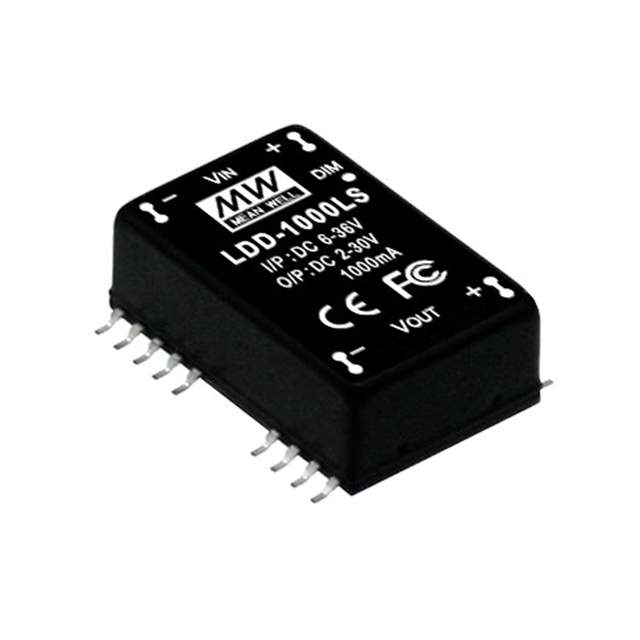

LDD-1000LS
