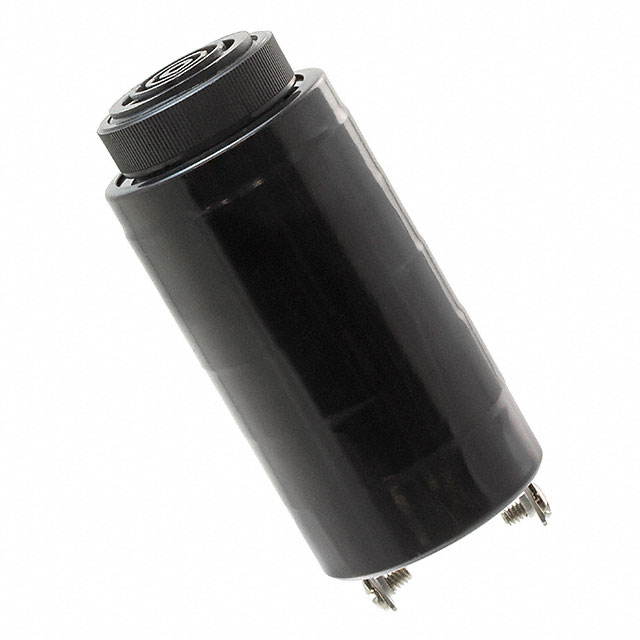

VSB110-1
Alarms, Buzzers, and Sirens
- Manufacturer No:
- VSB110-1
- Manufacture:
- Mallory Sonalert Products Inc.
- Datasheet:
- VSB110-1
- Description:
- AUDIO PIEZO IND 30-120V PNL MNT
In Stock
0 pcs On sales
$183.29
Product Parameter
- Series
- VSB
- Voltage Range
- 30 ~ 120V
- Ratings
- -
- Operating Mode
- Cuckoo
- Duration
- Repeating every 1.5 Sec
- Voltage - Rated
- 110V
- Approvals
- cUL, UL
- Current - Supply
- 40mA
- Frequency
- 800Hz, 1.2kHz
- Driver Circuitry
- Indicator, Internally Driven
- Packaging
- Bulk
- Size / Dimension
- 1.687" Dia (42.85mm)
- Input Type
- AC
- Height - Seated (Max)
- 3.642" (92.50mm)
- Technology
- Piezo
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 80dB @ 110V, 61cm
- Termination
- Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Mounting Type
- Panel Mount
- Port Location
- Top
