LXM2-PD01-0040
LED Lighting - Color
- Manufacturer No:
- LXM2-PD01-0040
- Manufacture:
- Lumileds
- Package:
- 1812 (4532 Metric)
- Datasheet:
- LXM2-PD01-0040
- Description:

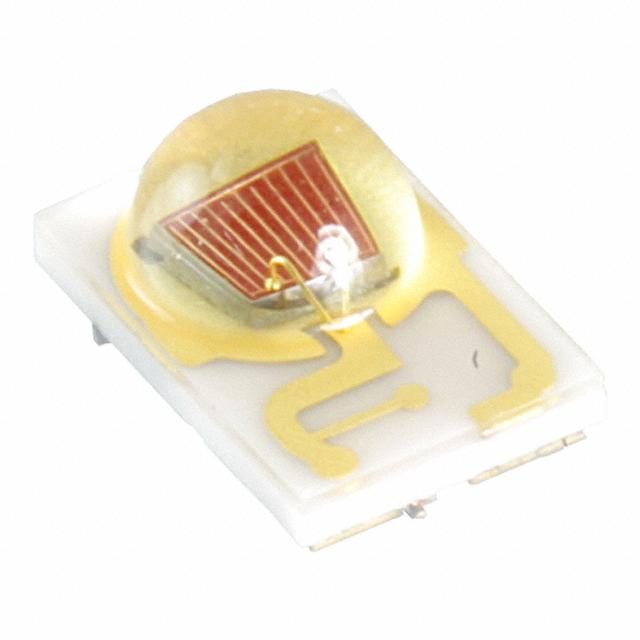

- LED LUXEON REBEL RED SMD
In Stock
3994 pcs On sales
$0
Product Parameter
- Color
- Red
- Height - Seated (Max)
- 0.083" (2.10mm)
- Series
- LUXEON Rebel Color
- Supplier Device Package
- SMD
- Packaging
- Digi-Reel®
- Lumens/Watt @ Current - Test
- 65 lm/W
- Wavelength
- 627nm (Typ)
- Voltage - Forward (Vf) (Typ)
- 2.1V
- Part Status
- Active
- Thermal Resistance of Package
- 8°C/W
- Current - Max
- 700mA
- Flux @ Current/Temperature - Test
- 48lm (Typ)
- Mounting Type
- Surface Mount
- Viewing Angle
- 125°
- Current - Test
- 350mA
- Package / Case
- 1812 (4532 Metric)
- Size / Dimension
- 0.177" L x 0.120" W (4.49mm x 3.05mm)
- Temperature - Test
- 25°C
