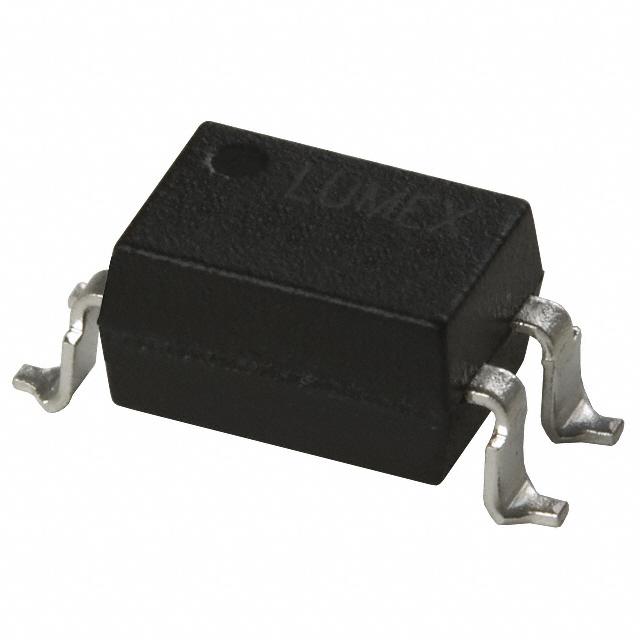

OCP-PCT114/C
Optoisolators - Transistor, Photovoltaic Output
- Manufacturer No:
- OCP-PCT114/C
- Manufacture:
- Lumex Opto/Components Inc.
- Package:
- 4-DIP (0.300", 7.62mm)
- Datasheet:
- OCP-PCT114/C
- Description:
- OPTOISOLATR 5KV TRANSISTOR 4-DIP
In Stock
0 pcs On sales
$0
Product Parameter
- Packaging
- Tube
- Supplier Device Package
- 4-DIP
- Input Type
- DC
- Current - Output / Channel
- 50mA
- Output Type
- Transistor
- Current Transfer Ratio (Max)
- 600% @ 2mA
- Part Status
- Active
- Current Transfer Ratio (Min)
- 60% @ 2mA
- Mounting Type
- Through Hole
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Package / Case
- 4-DIP (0.300", 7.62mm)
- Turn On / Turn Off Time (Typ)
- -
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 50mA
- Voltage - Isolation
- 5000Vrms
- Vce Saturation (Max)
- 300mV
- Operating Temperature
- -30°C ~ 100°C
- Rise / Fall Time (Typ)
- 5µs, 4µs
- Series
- -
- Voltage - Output (Max)
- 60V
