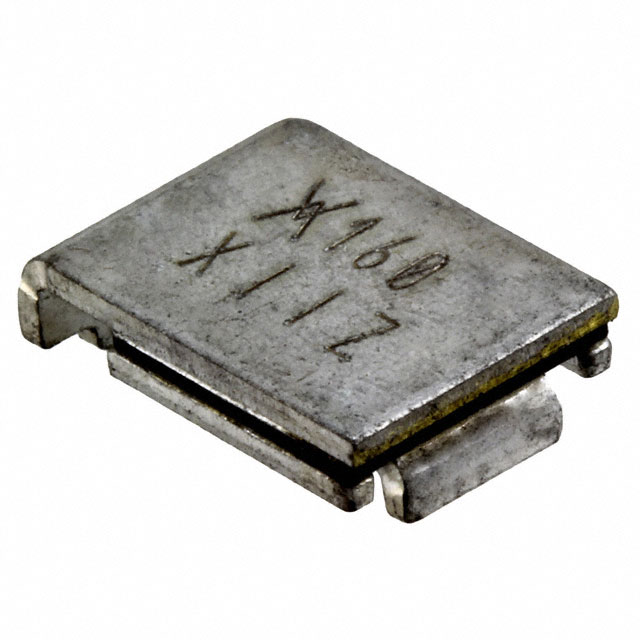

SMDH120-2
PTC Resettable Fuses
- Manufacturer No:
- SMDH120-2
- Manufacture:
- Littelfuse Inc.
- Package:
- 2-SMD
- Datasheet:
- SMDH120-2
- Description:
- PTC RESET FUSE 16V 1.2A 2SMD
In Stock
0 pcs On sales
$0.29
Product Parameter
- Current - Max
- 50A
- Mounting Type
- Surface Mount
- Voltage - Max
- 16V
- Package / Case
- 2-SMD
- Type
- Polymeric
- Thickness (Max)
- 0.118" (3.00mm)
- Series
- PolySwitch®, SMD
- Size / Dimension
- 0.290" L x 0.202" W (7.36mm x 5.12mm)
- Ratings
- -
- Current - Trip (It)
- 2.3A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- -
- Packaging
- Tape & Reel (TR)
- Operating Temperature
- -
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 1.2A
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 150 mOhms
- Time to Trip
- 2s
