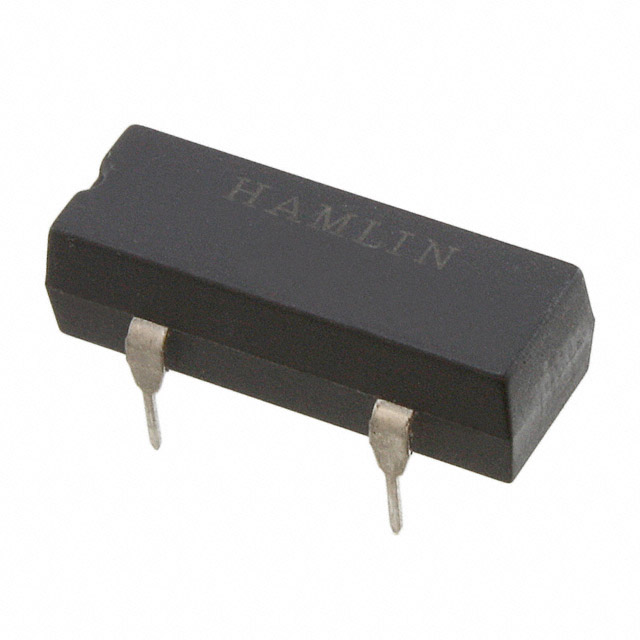

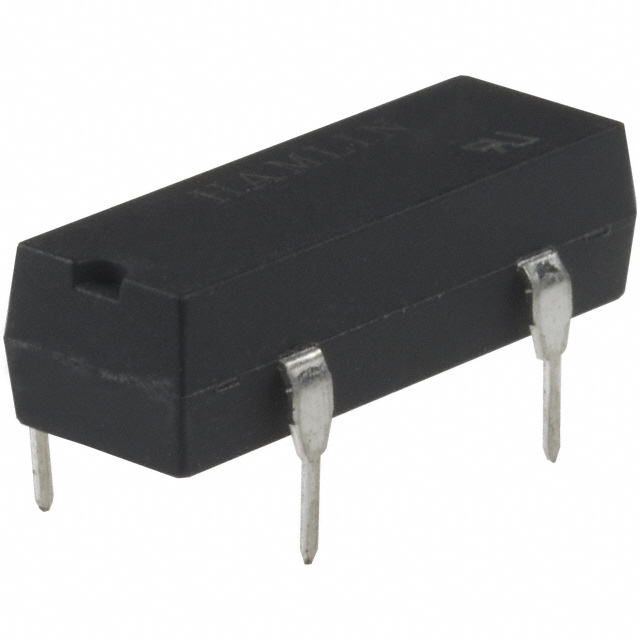

HE751A0510
Reed Relays
- Manufacturer No:
- HE751A0510
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- HE751A0510
- Description:
- RELAY REED SPST 500MA 5V
In Stock
2850 pcs On sales
$1.99
Product Parameter
- Coil Current
- 10.0mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 5VDC
- Contact Rating (Current)
- 500mA
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 1ms
- Release Time
- 1ms
- Mounting Type
- Through Hole
- Series
- HE700
- Coil Resistance
- 500 Ohms
- Features
- Diode
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 300VDC - Max
- Packaging
- Tube
- Termination Style
- PC Pin
- Part Status
- Active
- Must Operate Voltage
- 3.75 VDC
- Seal Rating
- -
- Must Release Voltage
- 0.5 VDC
