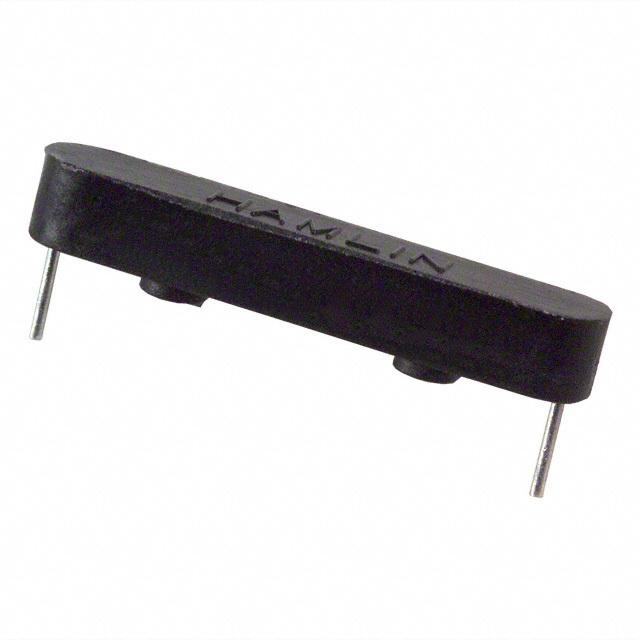

59050-010
Magnetic, Reed Switches
- Manufacturer No:
- 59050-010
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- 59050-010
- Description:
- SWITCH REED SPST-NO 350MA 140V
In Stock
7852 pcs On sales
$1.3
Product Parameter
- Operate Range
- 10 ~ 20AT
- Power - Rated
- 10W
- Type
- Molded Body
- Release Range
- -
- Series
- 59050
- Current - Carry
- 1A (DC)
- Circuit
- SPST-NO
- Length - Overall
- 0.900" (22.86mm)
- Packaging
- Bulk
- Termination Style
- PC Pin
- Capacitance
- 0.3pF
- Height Above Board
- 0.180" (4.57mm)
- Part Status
- Active
- Current - Switching
- 350mA (AC), 500mA (DC)
- Size - Body
- 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
- Operating Temperature
- -40°C ~ 105°C
- Operate Time
- 1ms
- Voltage - Switching AC
- 140V
- Release Time
- 1ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
59050-010 Relevant information
5905
MOUNTING CLIPS D8212-6
59050-010
SWITCH REED SPST-NO 350MA 140V

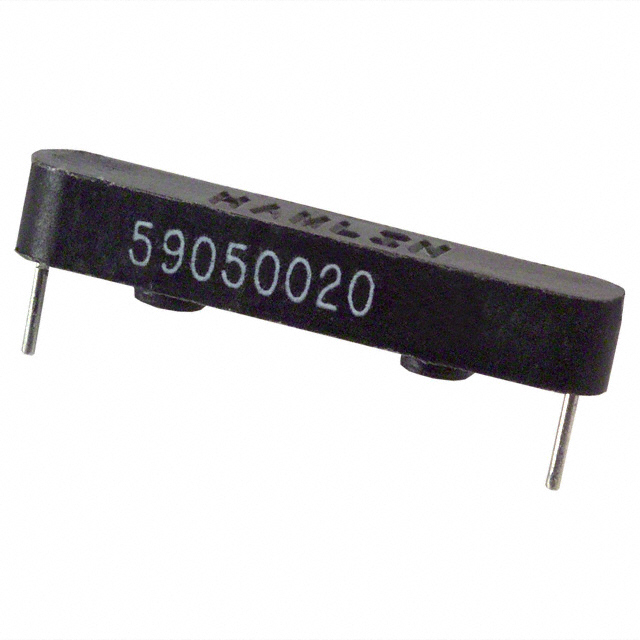

59050-020
SWITCH REED SPST-NO 300MA 265V
59050-030
SWITCH REED SPDT 250MA 175V
59050-1-S-00-0
SWITCH REED SPST-NO 350MA 140V

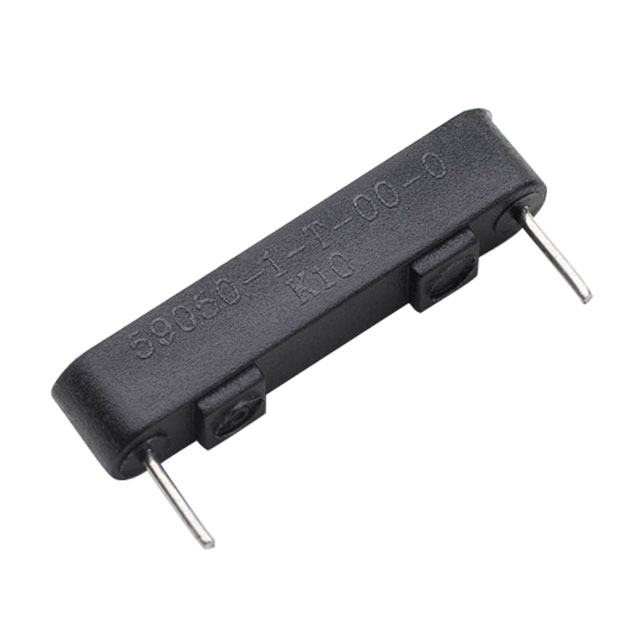

59050-1-T-00-0
