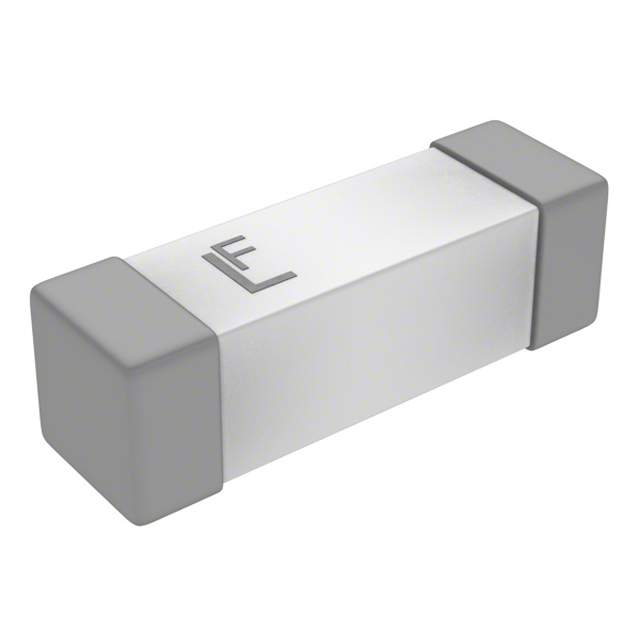

0456030.ER
Fuses
- Manufacturer No:
- 0456030.ER
- Manufacture:
- Littelfuse Inc.
- Package:
- 2-SMD, Square End Block
- Datasheet:
- 0456030.ER
- Description:
- FUSE BOARD MNT 30A 125VAC 72VDC
In Stock
6271 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Breaking Capacity @ Rated Voltage
- 100A AC, 500A DC
- Part Status
- Active
- Melting I²t
- 81
- Mounting Type
- Surface Mount
- Response Time
- Fast Blow
- Package / Case
- 2-SMD, Square End Block
- Size / Dimension
- 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
- DC Cold Resistance
- 0.00132 Ohms
- Color
- -
- Voltage Rating - AC
- 125V
- Series
- NANO²® 456
- Voltage Rating - DC
- 72V
- Approvals
- cULus, PSE
- Current Rating (Amps)
- 30A
- Fuse Type
- Board Mount (Cartridge Style Excluded)
- Operating Temperature
- -55°C ~ 125°C
