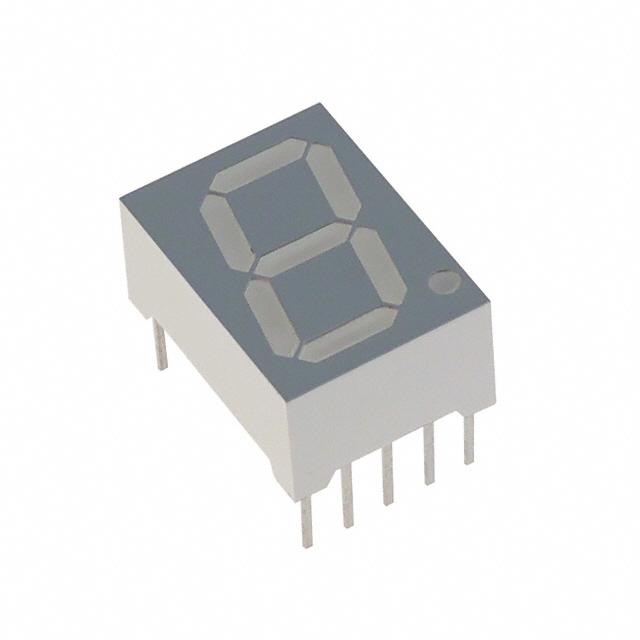

LSHD-5601
Display Modules - LED Character and Numeric
- Manufacturer No:
- LSHD-5601
- Manufacture:
- Lite-On, Inc.
- Package:
- 10-DIP (0.600", 15.24mm)
- Datasheet:
- LSHD-5601
- Description:
- LED 7-SEG .56" GREEN 565NM CA
In Stock
5263 pcs On sales
$1.3
Product Parameter
- Size / Dimension
- 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm)
- Wavelength - Peak
- 565nm
- Millicandela Rating
- 2.4mcd
- Color
- Green
- Number of Characters
- 1
- Series
- -
- Power Dissipation (Max)
- 75mW
- Packaging
- Tube
- Voltage - Forward (Vf) (Typ)
- 2.1V
- Common Pin
- Common Anode
- Part Status
- Active
- Display Type
- 7-Segment
- Current - Test
- 20mA
- Package / Case
- 10-DIP (0.600", 15.24mm)
- Digit/Alpha Size
- 0.56" (14.22mm)
