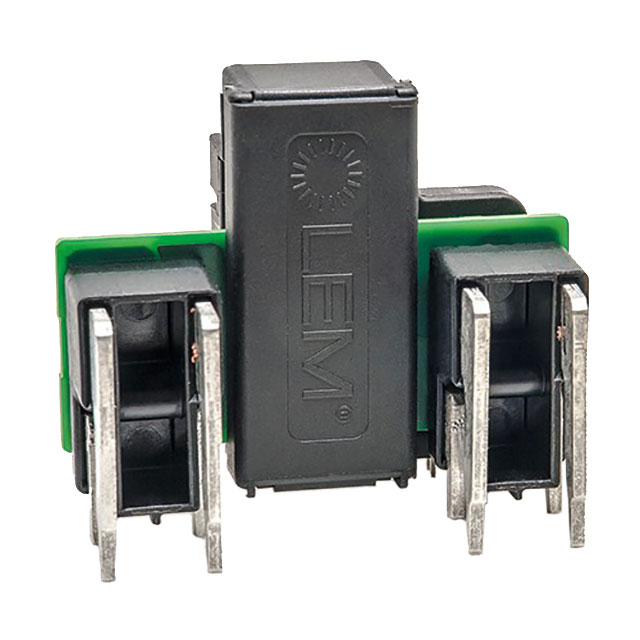

LDSR 0.3-TP/SP1
Current Sensors
- Manufacturer No:
- LDSR 0.3-TP/SP1
- Manufacture:
- LEM USA, Inc.
- Package:
- Module
- Datasheet:
- LDSR 0.3-TP/SP1
- Description:
- 1 PHASE LEAKAGE CURRENT DETECTIO
In Stock
59 pcs On sales
$32.78
Product Parameter
- Sensitivity
- 2.2V/A
- Sensor Type
- Hall Effect, Closed Loop
- Polarization
- Bidirectional
- For Measuring
- AC/DC
- Mounting Type
- Through Hole
- Response Time
- 300µs
- Output
- Ratiometric, Voltage
- Package / Case
- Module
- Series
- LDSR-TP
- Voltage - Supply
- 4.75V ~ 5.25V
- Accuracy
- -
- Current - Sensing
- 300mA
- Frequency
- DC ~ 2kHz
- Number of Channels
- 1
- Linearity
- ±3%
- Operating Temperature
- -40°C ~ 105°C (TA)
- Part Status
- Active
- Current - Supply (Max)
- 20.5mA
