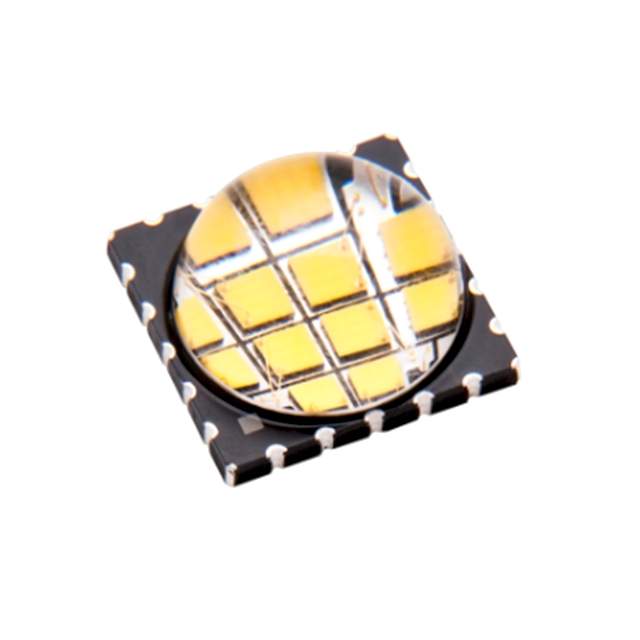

LZC-00CW0R-0055
LED Lighting - White
- Manufacturer No:
- LZC-00CW0R-0055
- Manufacture:
- LED Engin Inc.
- Package:
- 24-SMD, No Lead Exposed Pad
- Datasheet:
- LZC-00CW0R-0055
- Description:
- LED COOL WHITE 5500K 70CRI 24SMD
In Stock
95 pcs On sales
$0
Product Parameter
- Package / Case
- 24-SMD, No Lead Exposed Pad
- Size / Dimension
- 0.354" L x 0.354" W (9.00mm x 9.00mm)
- Height - Seated (Max)
- 0.220" (5.60mm)
- Color
- White, Cool
- Supplier Device Package
- SMD
- Series
- LZC
- CRI (Color Rendering Index)
- 70 (Typ)
- CCT (K)
- 5500K
- Flux @ 25°C, Current - Test
- 2014lm (1908lm ~ 2120lm)
- Packaging
- Digi-Reel®
- Flux @ 85°C, Current - Test
- -
- Part Status
- Active
- Lumens/Watt @ Current - Test
- 76 lm/W
- Current - Max
- 1.2A
- Voltage - Forward (Vf) (Typ)
- 37.8V
- Mounting Type
- Surface Mount
- Thermal Resistance of Package
- 0.7°C/W
- Viewing Angle
- 110°
- Current - Test
- 700mA
