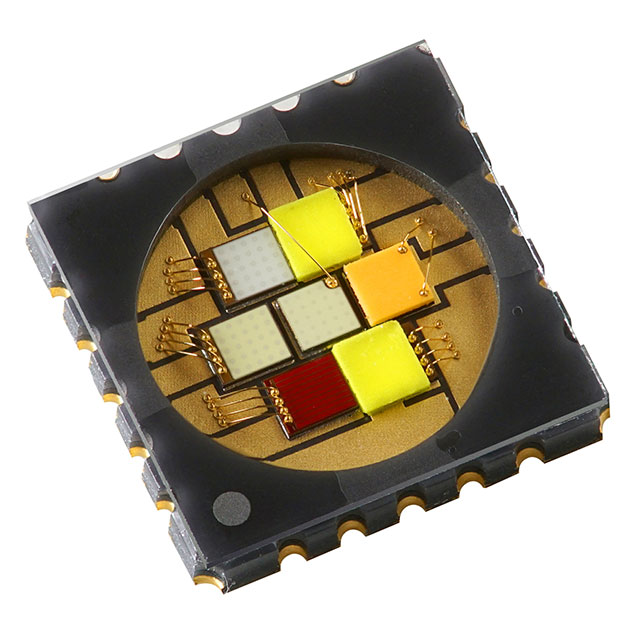

LZ7-A4M2PD-0000
LED Lighting - Color
- Manufacturer No:
- LZ7-A4M2PD-0000
- Manufacture:
- LED Engin Inc.
- Package:
- 2828 (7070 Metric)
- Datasheet:
- LZ7-A4M2PD-0000
- Description:
- LED EMITTER ON MCPCB 60W 6-COLOR
In Stock
77 pcs On sales
$40.17
Product Parameter
- Wavelength
- 623nm Red, 520nm Green, 451nm Blue, 590nm Amber, 500nm Cyan
- Voltage - Forward (Vf) (Typ)
- 2.3V Red, 3.55V Green, 3.05V Blue, 3.3V Amber, 3.45V Cyan, 6.1V Lime
- Part Status
- Active
- Thermal Resistance of Package
- 0.8°C/W
- Current - Max
- 2.5A Red, 3A Green, 3A Blue, 1.5A Amber, 1A Cyan, 2.5A Lime
- Flux @ Current/Temperature - Test
- 95lm Red, 180lm Green, 42lm Blue, 140lm Amber, 135lm Cyan, 620lm Lime
- Mounting Type
- Surface Mount
- Viewing Angle
- 114°
- Current - Test
- 1A Red, 1A Green, 1A Red, 1A Amber, 1A Cyan, 1A Lime
- Package / Case
- 2828 (7070 Metric)
- Size / Dimension
- 0.276" L x 0.276" W (7.00mm x 7.00mm)
- Temperature - Test
- 25°C
- Color
- Red, Green, Blue, Amber, Cyan, Lime
- Height - Seated (Max)
- 0.050" (1.26mm)
- Series
- LZ7
- Supplier Device Package
- SMD
- Packaging
- Tape & Reel (TR)
- Lumens/Watt @ Current - Test
- 41 lm/W Red, 51 lm/W Green, 14 lm/W Blue, 42 lm/W Amber, 39 lm/W Cyan, 102 lm/W Lime
