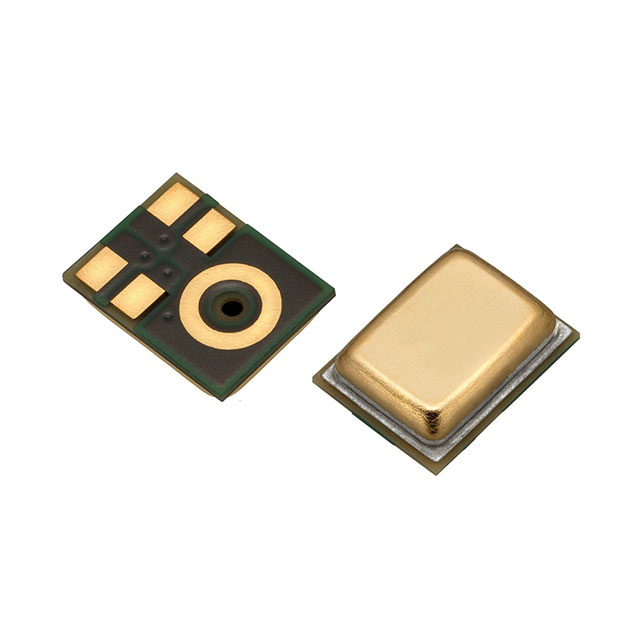

SPH1668LM4H-1
Microphones
- Manufacturer No:
- SPH1668LM4H-1
- Manufacture:
- Knowles
- Datasheet:
- SPH1668LM4H-1
- Description:
- MIC MEMS DIGITAL PDM OMNI -29DB
In Stock
47342 pcs On sales
$0
Product Parameter
- Direction
- Omnidirectional
- Size / Dimension
- 0.138" L x 0.104" W (3.50mm x 2.65mm)
- Packaging
- Digi-Reel®
- S/N Ratio
- 65.5dB
- Output Type
- Digital, PDM
- Part Status
- Not For New Designs
- Sensitivity
- -29dB ±1dB @ 94dB SPL
- Termination
- Solder Pads
- Height (Max)
- 0.043" (1.10mm)
- Port Location
- Bottom
- Type
- MEMS (Silicon)
- Voltage Range
- 1.62V ~ 3.6V
- Shape
- Rectangular
- Frequency Range
- 100Hz ~ 10kHz
- Series
- SiSonic™, Zero-Height Mic™, SPH
- Current - Supply
- 700µA
