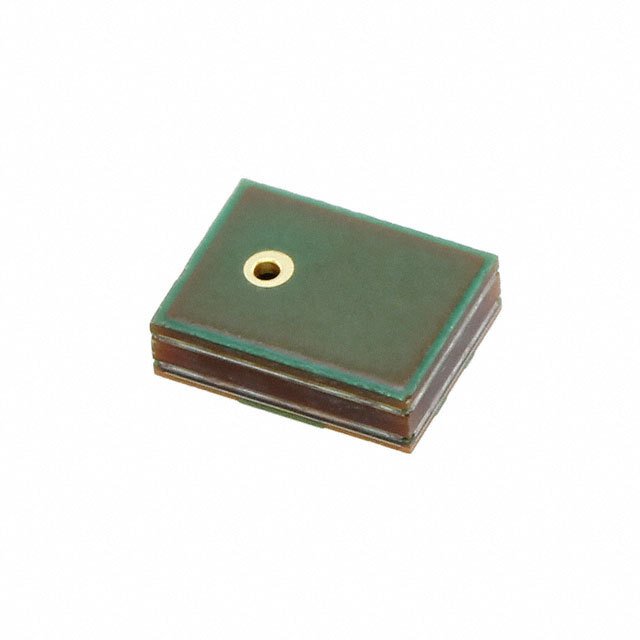

SPH0611LR5H-1
Microphones
- Manufacturer No:
- SPH0611LR5H-1
- Manufacture:
- Knowles
- Datasheet:
- SPH0611LR5H-1
- Description:
- MIC MEMS ANALOG OMNI -38DB
In Stock
40818 pcs On sales
$0
Product Parameter

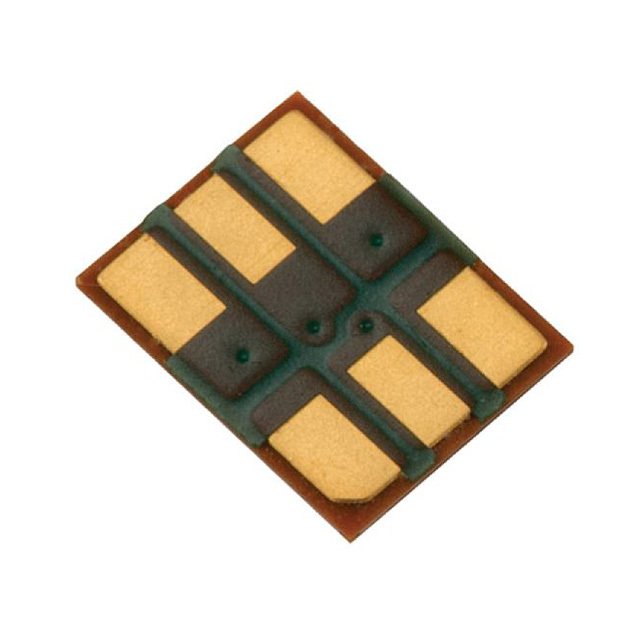

- Termination
- Solder Pads
- Height (Max)
- 0.043" (1.10mm)
- Type
- MEMS (Silicon)
- Port Location
- Bottom
- Shape
- Rectangular
- Voltage Range
- 1.5V ~ 3.6V
- Series
- SiSonic™
- Frequency Range
- 100Hz ~ 10kHz
- Direction
- Omnidirectional
- Current - Supply
- 185µA
- Impedance
- 400 Ohms
- Size / Dimension
- 0.138" L x 0.104" W (3.50mm x 2.65mm)
- Packaging
- Digi-Reel®
- S/N Ratio
- 65dB
- Output Type
- Analog
- Part Status
- Not For New Designs
- Sensitivity
- -38dB ±1dB @ 94dB SPL
