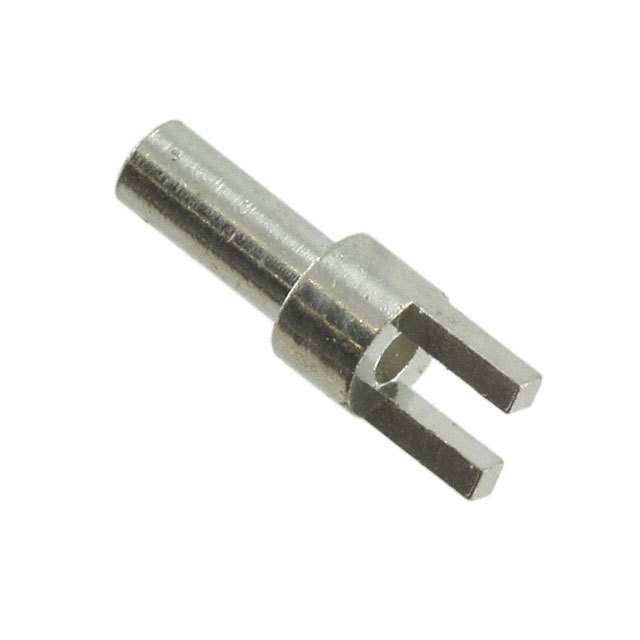

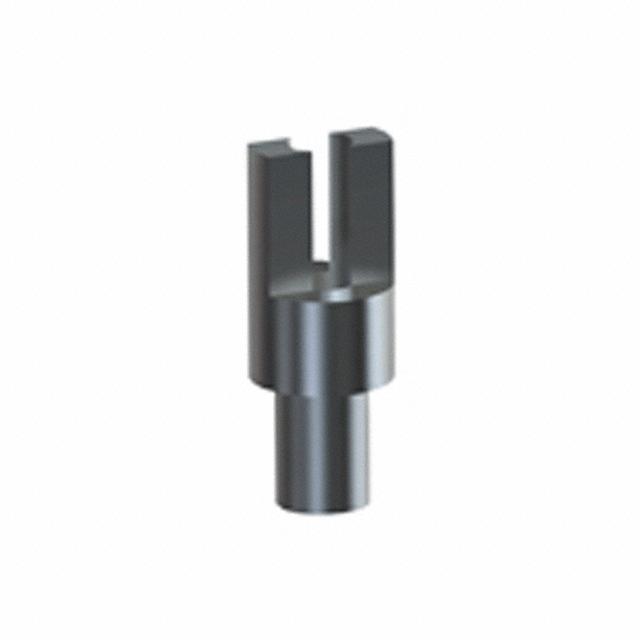

1526-3
Terminals - Turret Connectors
- Manufacturer No:
- 1526-3
- Manufacture:
- Keystone Electronics
- Datasheet:
- 1526-3
- Description:
- TERM TURRET HOLLOW L=3.96MM TIN
In Stock
4544 pcs On sales
$0.48
Product Parameter
- Flange Diameter
- 0.094" (2.39mm)
- Contact Finish Thickness
- -
- Staking Side ID
- -
- Staking Side OD
- 0.062" (1.57mm)
- Contact Material
- Brass
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.271" (6.88mm)
- Part Status
- Active
- Number of Turrets
- Single
- Termination
- Staking Flare
- Length - Above Board
- 0.156" (3.96mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.115" (2.92mm)
- Terminal Type
- Single End, Fork, Hollow
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- -
- Board Thickness
- 0.093" (2.36mm)
- Mounting Hole Diameter
- 0.064" (1.63mm)
