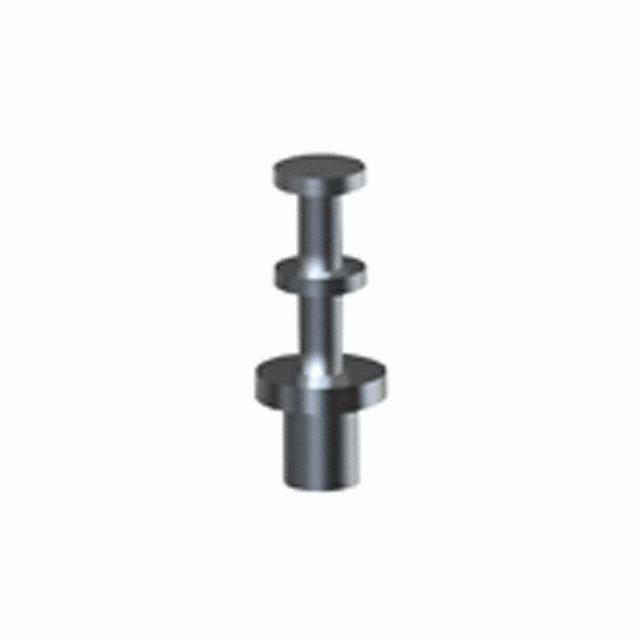

1514-2
Terminals - Turret Connectors
- Manufacturer No:
- 1514-2
- Manufacture:
- Keystone Electronics
- Datasheet:
- 1514-2
- Description:
- TERM TURRET SINGLE L=7.14MM TIN
In Stock
19083 pcs On sales
$0.47
Product Parameter
- Part Status
- Active
- Number of Turrets
- Double
- Termination
- Staking Flare
- Length - Above Board
- 0.281" (7.14mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.105" (2.67mm)
- Terminal Type
- Single End
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- 0.109" (2.77mm)
- Board Thickness
- 0.062" (1.57mm)
- Mounting Hole Diameter
- 0.094" (2.39mm)
- Flange Diameter
- 0.156" (3.96mm)
- Contact Finish Thickness
- -
- Staking Side ID
- -
- Staking Side OD
- 0.090" (2.29mm)
- Contact Material
- Brass
- Series
- -
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.386" (9.80mm)
