1352-1
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 1352-1
- Manufacture:
- Keystone Electronics
- Datasheet:
- 1352-1
- Description:
- CONN PC PIN CIRC 0.031DIA GOLD
In Stock
94238 pcs On sales
$0.36
Product Parameter
- Terminal Style
- Single End
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Board Thickness
- 0.032" (0.81mm)
- Flange Diameter
- 0.070" (1.77mm)
- Contact Material
- Brass
- Series
- -
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.348" (8.84mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.300" (7.62mm)
- Part Status
- Active
- Length - Below Flange
- 0.028" (0.71mm)
- Termination
- Solder
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.043" (1.09mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.031" (0.79mm) Dia
- Contact Finish
- Gold
- Pin Size - Below Flange
- 0.040" (1.02mm) Dia
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
1352-1 Relevant information
1352

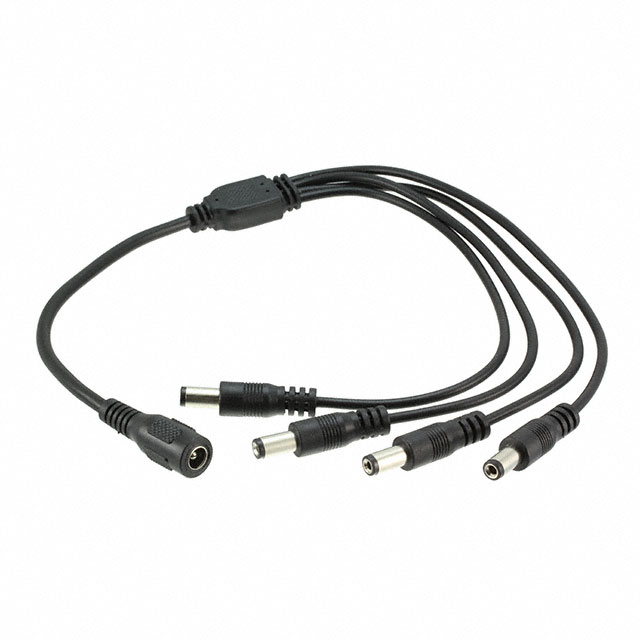

4WAY 2.1MM BARREL SPLITTER
1352-1
CONN PC PIN CIRC 0.031DIA GOLD
13520
BAG SHIELD METAL-IN 18X18
1352010000

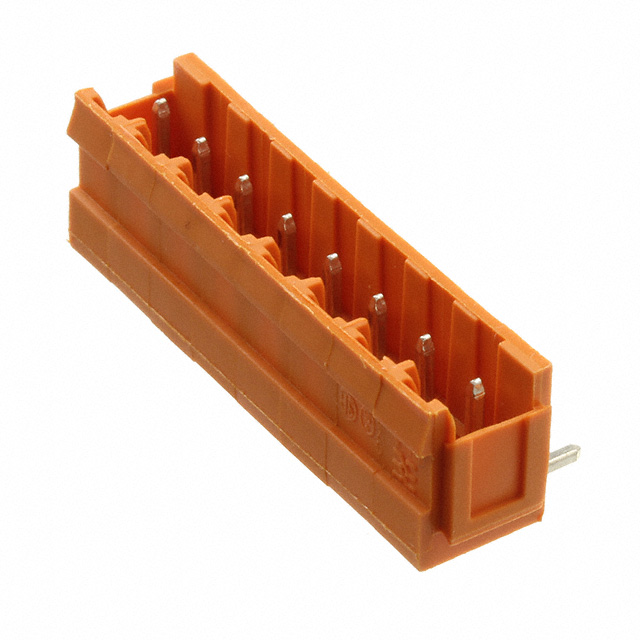

TERM BLOCK HDR 8POS 90DEG 5.08MM
1352060000
TERM BLOCK HDR 8POS 90DEG 5.08MM
1352180000

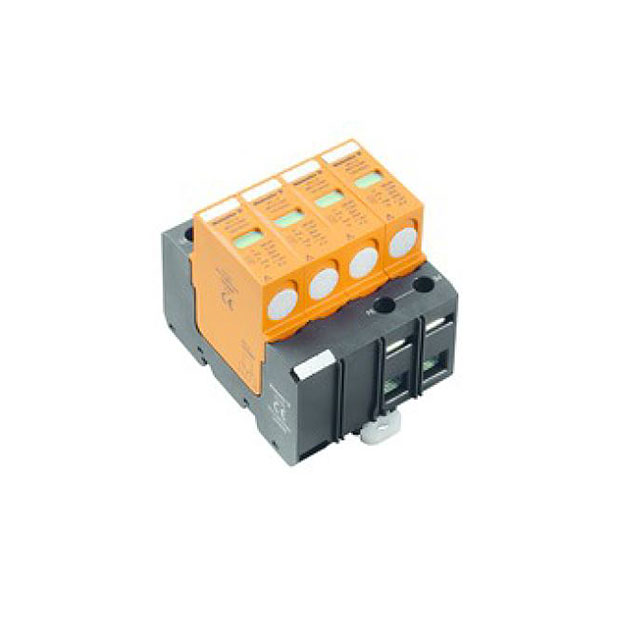

SURGE PROTECTION
