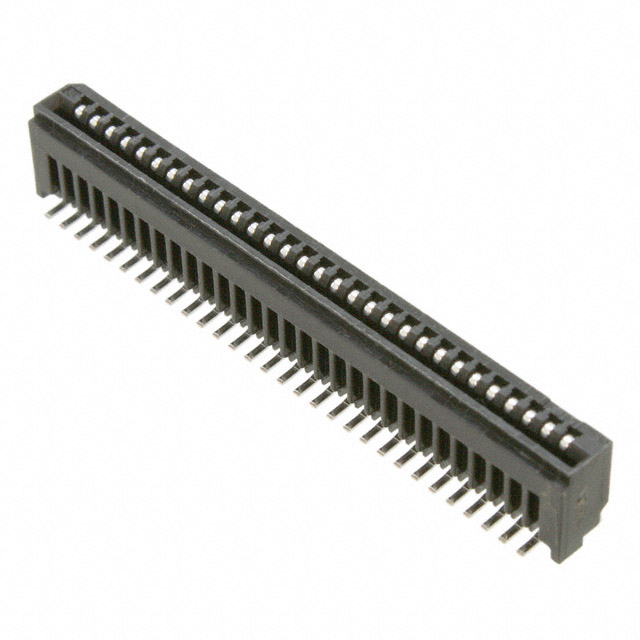

30FMN-SMT-A-TF

FFC, FPC (Flat Flexible) Connectors

Manufacturer No:: 30FMN-SMT-A-TF
Manufacture:: JST Sales America Inc.
Datasheet:: 30FMN-SMT-A-TF
Description:: CONN FFC TOP 30POS 1.00MM R/A

In Stock

0 pcs On sales

Product Parameter

Termination: Solder

FFC, FCB Thickness: 0.30mm

Housing Color: Black

Height Above Board: 0.118" (3.00mm)

Mating Cycles: -

Dielectric Material: Polyamide (PA6T), Nylon 6T

Mounting Type: Surface Mount, Right Angle

Number of Positions: 30

Actuator Color: -

Current Rating (Amps): 0.5A

Cable End Type: Straight

Operating Temperature: -25°C ~ 85°C

Contact Finish: Tin

Connector/Contact Type: Contacts, Top

Pitch: 0.039" (1.00mm)

Flat Flex Type: FFC

Contact Finish Thickness: -

Series: FMN

Voltage Rating: 50V

Material Flammability Rating: UL94 V-0

Features: Low Insertion Force (LIF)

Locking Feature: -

Packaging: Tape & Reel (TR)

Contact Material: Phosphor Bronze

Part Status: Obsolete

Actuator Material: -
