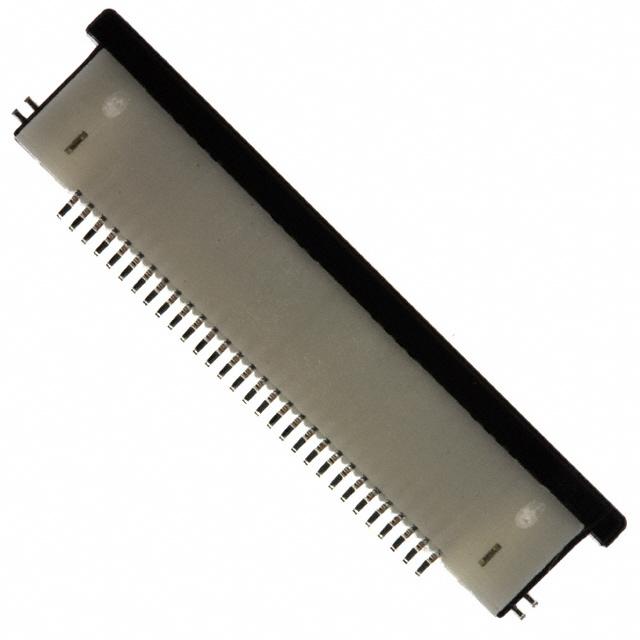

30FLZ-RSM1-TB
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 30FLZ-RSM1-TB
- Manufacture:
- JST Sales America Inc.
- Datasheet:
- 30FLZ-RSM1-TB
- Description:
- CONN FFC BOTTOM 30POS 0.50MM R/A
In Stock
0 pcs On sales
$0
Product Parameter
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Gray
- Height Above Board
- 0.079" (2.00mm)
- Mating Cycles
- -
- Dielectric Material
- Polyamide (PA46), Nylon 4/6
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 30
- Actuator Color
- Black
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Tapered
- Operating Temperature
- -25°C ~ 85°C
- Contact Finish
- Tin-Lead
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC, FPC
- Contact Finish Thickness
- -
- Series
- FLZ
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Obsolete
- Actuator Material
- Polyamide (PA46), Nylon 4/6
