WP9-P024VA1-R500
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Manufacturer No:
- WP9-P024VA1-R500
- Manufacture:
- JAE Electronics
- Datasheet:
- WP9-P024VA1-R500
- Description:
- CONN PLUG 24POS SMD GOLD
In Stock
0 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount
- Connector Type
- Plug, Outer Shroud Contacts
- Contact Finish
- Gold
- Number of Rows
- 2
- Height Above Board
- 0.026" (0.65mm)
- Number of Positions
- 24
- Mated Stacking Heights
- 0.8mm
- Pitch
- 0.016" (0.40mm)
- Contact Finish Thickness
- 3.94µin (0.10µm)
- Series
- WP9
- Features
- Solder Retention
- Packaging
- Digi-Reel®
- Part Status
- Discontinued at Digi-Key
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
WP9-P024VA1-R500 Relevant information
WP9-P010VA1-R500
CONN PLUG 10POS SMD GOLD
WP9-P010VA1-R6000
CONN PLUG 10POS SMD GOLD

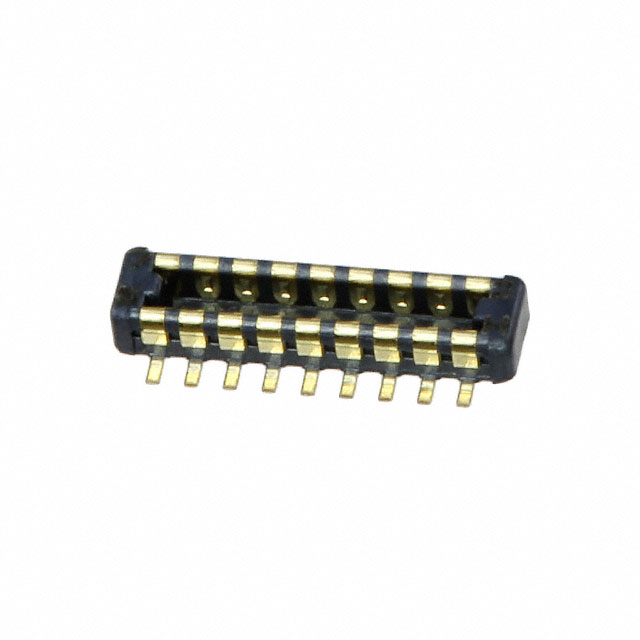

WP9-P014VA1-R500
CONN PLUG 14POS SMD GOLD
WP9-P014VA1-R6000
CONN PLUG 14POS SMD GOLD

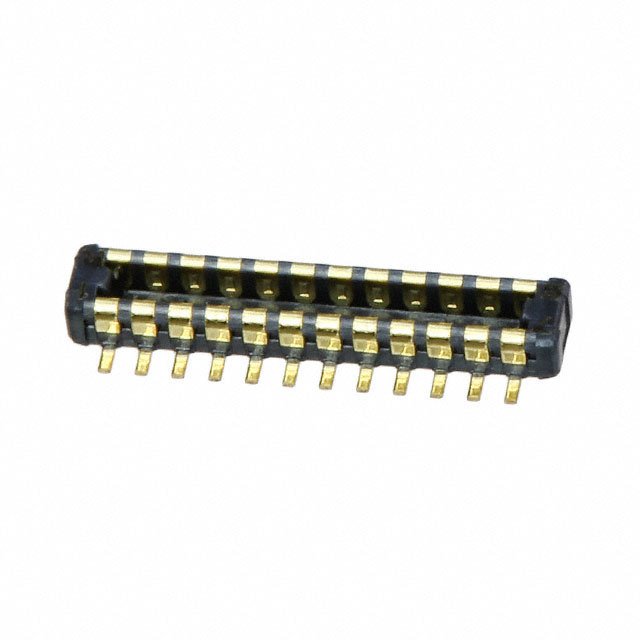

WP9-P020VA1-R500
