IXGN200N170
Transistors - IGBTs - Single
- Manufacturer No:
- IXGN200N170
- Manufacture:
- IXYS
- Package:
- SOT-227-4, miniBLOC
- Datasheet:
- IXGN200N170
- Description:
- IGBT
In Stock
0 pcs On sales
$52.44
Product Parameter
- Part Status
- Active
- Current - Collector Pulsed (Icm)
- 1050A
- Power - Max
- 1250W
- Voltage - Collector Emitter Breakdown (Max)
- 1700V
- Mounting Type
- Chassis Mount
- Package / Case
- SOT-227-4, miniBLOC
- Test Condition
- 850V, 100A, 1Ohm, 15V
- Switching Energy
- 28mJ (on), 30mJ (off)
- Td (on/off) @ 25°C
- 37ns/320ns
- Series
- -
- Operating Temperature
- -55°C ~ 150°C (TJ)
- IGBT Type
- -
- Supplier Device Package
- SOT-227B
- Packaging
- Tube
- Vce(on) (Max) @ Vge, Ic
- 2.6V @ 15V, 100A
- Input Type
- Standard
- Reverse Recovery Time (trr)
- 133ns
- Gate Charge
- 540nC
- Current - Collector (Ic) (Max)
- 280A
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
IXGN200N170 Relevant information
IXGN100N170
IGBT 1700V 160A GENX3 SOT-227B
IXGN120N60A3
IGBT 200A 600V SOT-227B

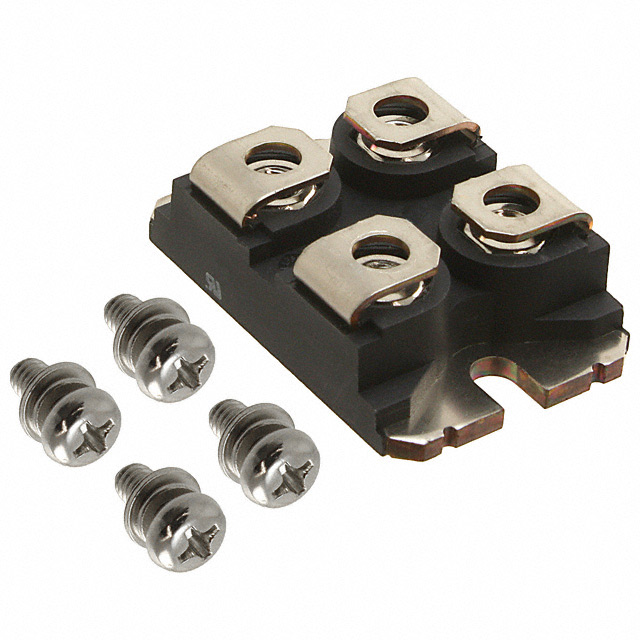

IXGN120N60A3D1
