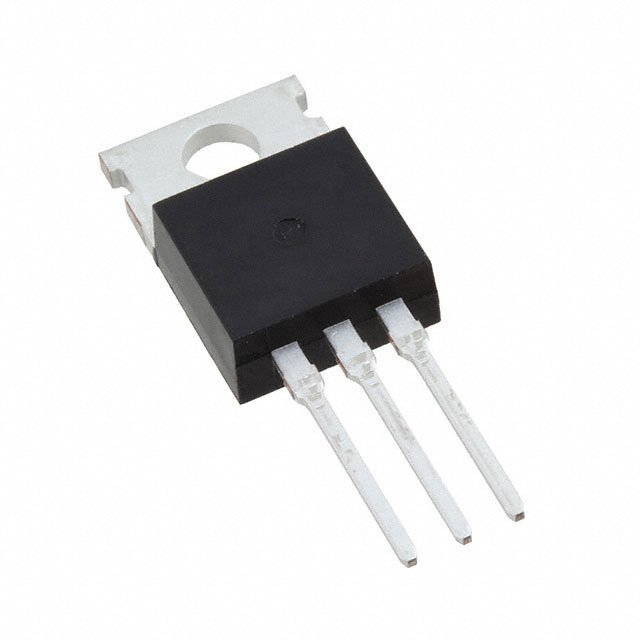

CLA30E1200PC-TRL
Thyristors - SCRs
- Manufacturer No:
- CLA30E1200PC-TRL
- Manufacture:
- IXYS
- Package:
- TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Datasheet:
- CLA30E1200PC-TRL
- Description:
- THYRISTOR PHASE 1200V TO-263
In Stock
0 pcs On sales
$1.41
Product Parameter
- Voltage - On State (Vtm) (Max)
- 1.59V
- Series
- -
- Current - Gate Trigger (Igt) (Max)
- 30mA
- SCR Type
- Standard Recovery
- Current - On State (It (AV)) (Max)
- 30A
- Packaging
- Tape & Reel (TR)
- Voltage - Gate Trigger (Vgt) (Max)
- 1.3V
- Part Status
- Active
- Current - On State (It (RMS)) (Max)
- 47A
- Mounting Type
- Surface Mount
- Current - Non Rep. Surge 50, 60Hz (Itsm)
- 300A, 325A
- Package / Case
- TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Voltage - Off State
- 1.2kV
- Operating Temperature
- -40°C ~ 150°C
- Supplier Device Package
- TO-263 (D²Pak)
- Current - Hold (Ih) (Max)
- 60mA
- Current - Off State (Max)
- 10µA
