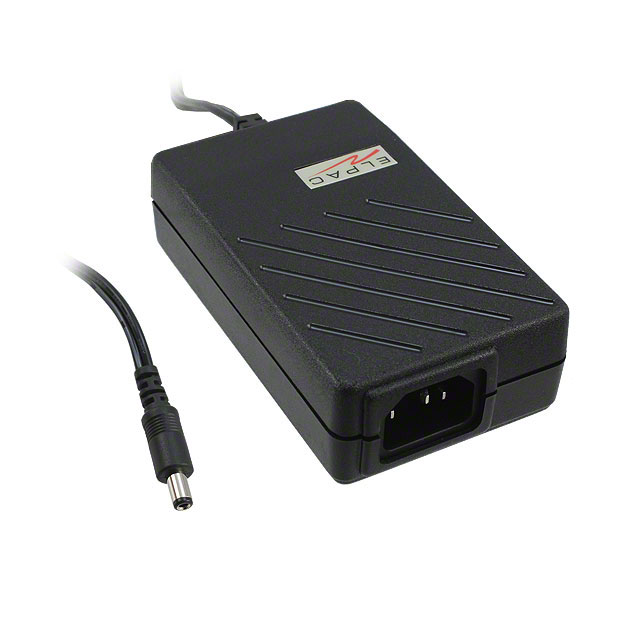

MW2418-760-NC-BK
AC DC Desktop, Wall Adapters
- Manufacturer No:
- MW2418-760-NC-BK
- Manufacture:
- Inventus Power
- Datasheet:
- MW2418-760-NC-BK
- Description:
- AC/DC DESKTOP ADAPTER 18V 23W
In Stock
0 pcs On sales
$0
Product Parameter
- Input Type
- Cord (Sold Separately)
- Operating Temperature
- 0°C ~ 60°C
- Cord Length
- 72" (1.83m)
- Current - Output (Max)
- 1.3A
- Part Status
- Obsolete
- No Load Power Consumption
- 850mW (Max)
- Applications
- Medical
- Polarization
- Positive Center
- Power (Watts)
- 23W
- Input Connector
- IEC 320-C14
- Region Utilized
- International
- Form
- Desktop (Class I)
- Voltage - Input
- 85 ~ 264 VAC
- Series
- MW24 (24W)
- Output Connector
- -
- Approvals
- cTUVus, UL
- Size / Dimension
- 4.25" L x 2.54" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
- Efficiency
- 81%
- Voltage - Output
- 18V
