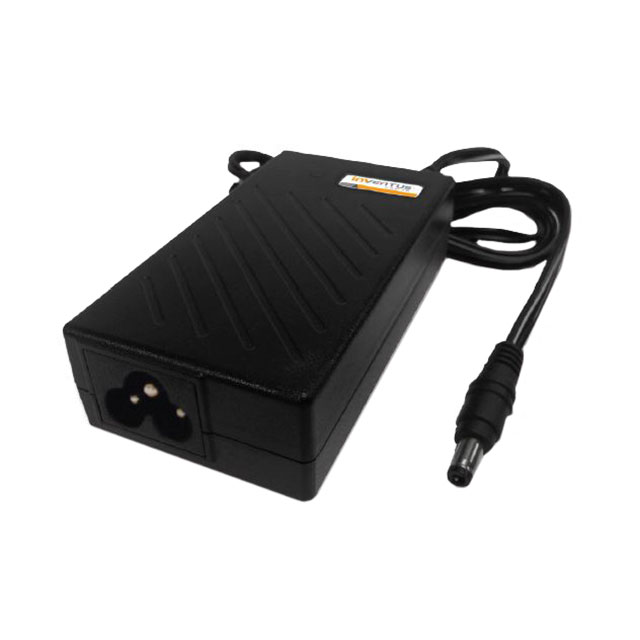

IPD2012-760
AC DC Desktop, Wall Adapters
- Manufacturer No:
- IPD2012-760
- Manufacture:
- Inventus Power
- Datasheet:
- IPD2012-760
- Description:
- 20 WATT DESKTOP POWER SUPPLY 12V
In Stock
114 pcs On sales
$15.68
Product Parameter
- Series
- IPD20 (20W)
- Voltage - Input
- 85 ~ 264 VAC
- Weight
- 0.353 lb (160.12 g)
- Output Connector
- Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
- Approvals
- CB, CE, cTUVus
- Size / Dimension
- 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
- Efficiency
- Level VI
- Voltage - Output
- 12V
- Input Type
- Cord (Sold Separately)
- Operating Temperature
- 0°C ~ 60°C
- Cord Length
- 48" (1.22m)
- Current - Output (Max)
- 1.6A
- Part Status
- Active
- No Load Power Consumption
- 100mW (Max)
- Applications
- ITE (Commercial)
- Polarization
- Positive Center
- Power (Watts)
- 19W
- Input Connector
- IEC 320-C6
- Form
- Desktop (Class I)
- Region Utilized
- North America
