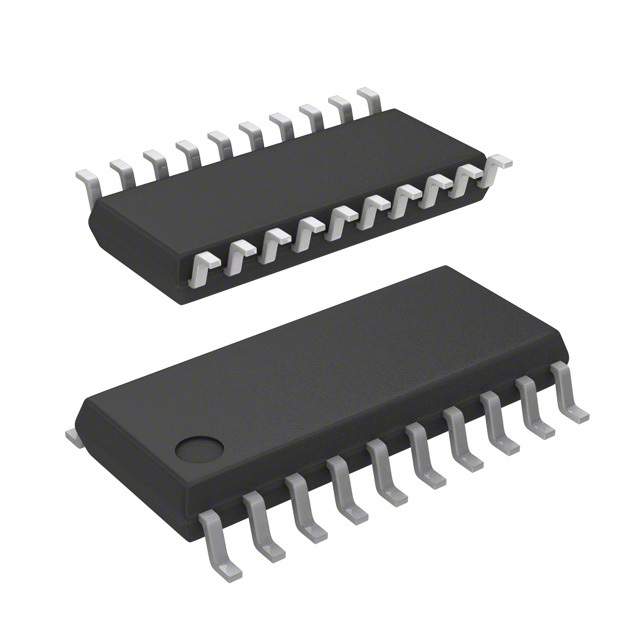

2ED020I12F2XUMA1
PMIC - Gate Drivers
- Manufacturer No:
- 2ED020I12F2XUMA1
- Manufacture:
- Infineon Technologies
- Package:
- 36-BSSOP (0.295", 7.50mm Width), 32 Leads
- Datasheet:
- 2ED020I12F2XUMA1
- Description:
- IC DRIVER IGBT DSO36
In Stock
0 pcs On sales
$3.85
Product Parameter
- Input Type
- Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap)
- 1200V
- Part Status
- Active
- Current - Peak Output (Source, Sink)
- 2A, 2A
- Channel Type
- Independent
- Mounting Type
- Surface Mount
- Package / Case
- 36-BSSOP (0.295", 7.50mm Width), 32 Leads
- Voltage - Supply
- 13V ~ 20V
- Number of Drivers
- 2
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Series
- EiceDriver™
- Rise / Fall Time (Typ)
- 30ns, 50ns
- Gate Type
- IGBT
- Supplier Device Package
- PG-DSO-36-58
- Packaging
- Tape & Reel (TR)
- Logic Voltage - VIL, VIH
- 1.5V, 3.5V
