AS6M-2Y2P
Selector Switches
- Manufacturer No:
- AS6M-2Y2P
- Manufacture:
- IDEC
- Datasheet:
- AS6M-2Y2P
- Description:
- 16MM SELECTOR SWITCH
In Stock
80 pcs On sales
$34.63
Product Parameter
- Approvals
- CCC, CE, CSA, cULus
- Voltage Rating - DC
- 24V
- Part Status
- Active
- Current Rating (Amps)
- 1A (AC/DC)
- Illumination
- Non-Illuminated
- Operating Temperature
- -25°C ~ 55°C
- Mounting Type
- Panel Mount
- Panel Cutout Dimensions
- Circular - 16.20mm Dia
- Electrical Life
- 100,000 Cycles
- Illumination Type, Color
- -
- Mechanical Life
- 250,000 Cycles
- Illumination Voltage (Nominal)
- -
- Switch Function
- On-On
- Termination Style
- Solder, Quick Connect - 0.110" (2.8mm)
- Type
- Standard
- Ingress Protection
- IP65 - Dust Tight, Oil and Water Resistant
- Series
- A6
- Depth Behind Flange
- 30.00mm
- Circuit
- DPDT
- Number of Positions
- 2
- Features
- -
- Voltage Rating - AC
- 120V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
AS6M-2Y2P Relevant information

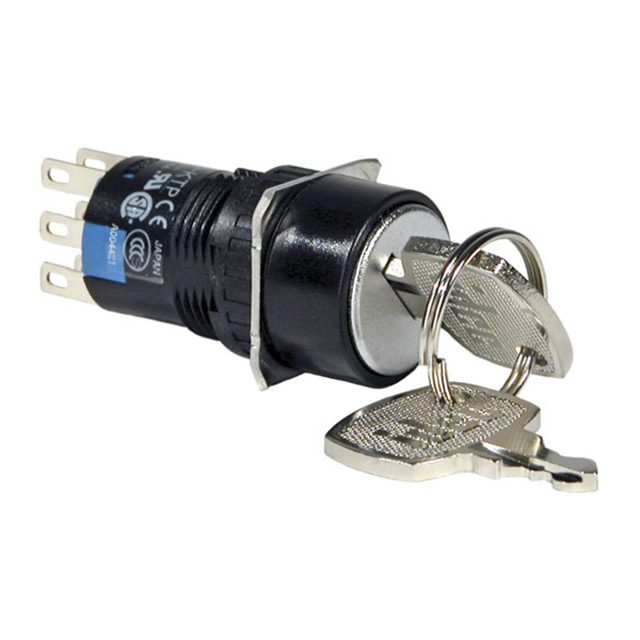

AS6M-2KT2PA
