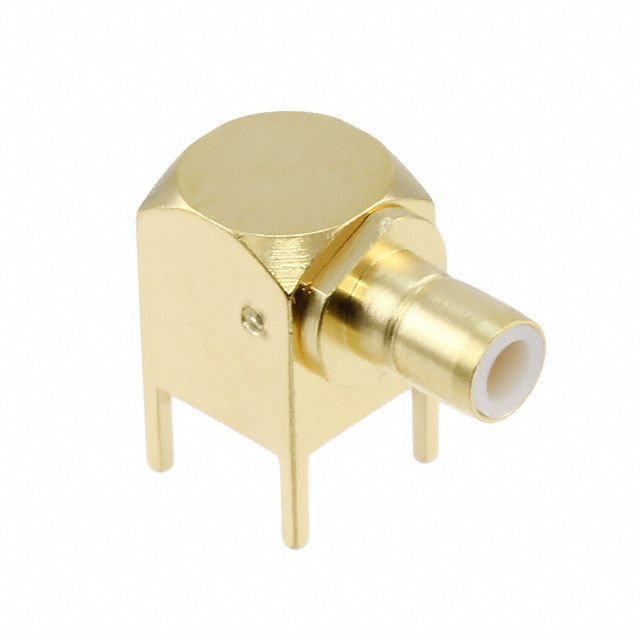

UM-LR-PC(41)
Coaxial Connectors (RF)
- Manufacturer No:
- UM-LR-PC(41)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- UM-LR-PC(41)
- Description:
- CONN UMC RCPT R/A 50 OHM PCB
In Stock
4 pcs On sales
$17.66
Product Parameter
- Mounting Type
- Through Hole, Right Angle
- Operating Temperature
- -55°C ~ 85°C
- Series
- UM
- Connector Type
- Receptacle, Male Pin
- Center Contact Plating
- Gold
- Features
- -
- Fastening Type
- Snap-On
- Center Contact Material
- Brass
- Includes
- -
- Insertion Loss
- -
- Impedance
- 50Ohm
- Connector Style
- U.FL (UMCC)
- Packaging
- Bulk
- Frequency - Max
- 1GHz
- Body Finish
- Gold
- Number of Ports
- 1
- Cable Group
- -
- Mounting Feature
- -
- Part Status
- Active
- Ingress Protection
- -
- Body Material
- Brass
- Shield Termination
- Solder
- Housing Color
- Gold
- Contact Termination
- Solder
- Mating Cycles
- 1000
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
