MXR-8P-8P(72)
Circular Connectors
- Manufacturer No:
- MXR-8P-8P(72)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- MXR-8P-8P(72)
- Description:
- CONN PLUG MALE 8POS GOLD SOLDER
In Stock
77 pcs On sales
$20.91
Product Parameter
- Packaging
- Bulk
- Voltage Rating
- 100VAC, 140VDC
- Material Flammability Rating
- UL94 V-0
- Shielding
- -
- Insert Material
- Polybutylene Terephthalate (PBT)
- Contact Finish Thickness - Mating
- 8.00µin (0.203µm)
- Orientation
- Keyed
- Shell Size, MIL
- -
- Part Status
- Active
- Contact Material
- Brass
- Termination
- Solder Cup
- Mounting Feature
- -
- Applications
- -
- Ingress Protection
- -
- Shell Finish
- Nickel
- Number of Positions
- 8
- Cable Opening
- -
- Shell Size - Insert
- 8
- Mounting Type
- Free Hanging (In-Line)
- Current Rating (Amps)
- 2A
- Color
- Silver, White
- Connector Type
- Plug, Male Pins
- Operating Temperature
- -25°C ~ 85°C
- Series
- MXR
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- Gold
- Features
- Backshell, Clamp, Ground, Strain Relief
- Shell Material
- Aluminum Alloy
- Backshell Material, Plating
- Brass, Nickel
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MXR-8P-8P(72) Relevant information
MXR-8J-8S(71)
CONNECTOR

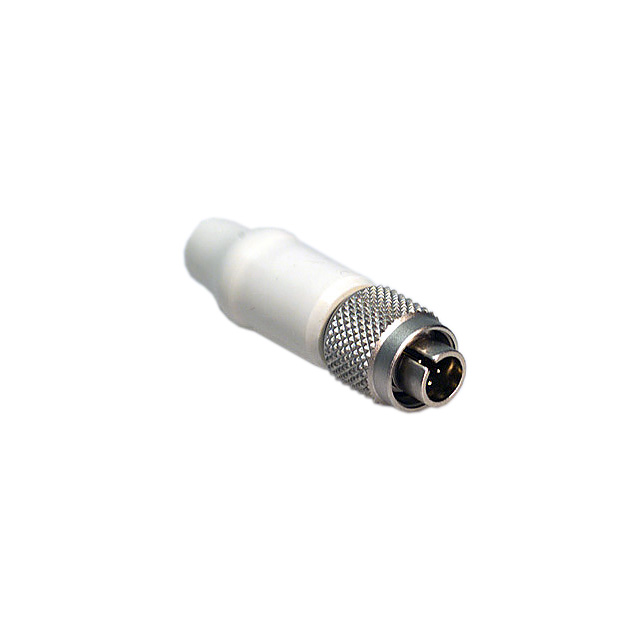

MXR-8P-8P
CONN PLUG MALE 8POS GOLD SOLDER

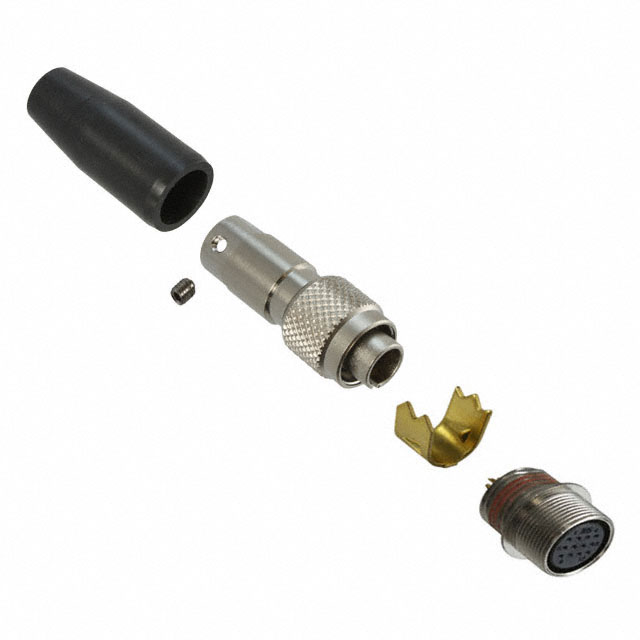

MXR-8P-8P(01)
CONN PLUG MALE 8POS GOLD SOLDER
MXR-8P-8P(31)
CONNECTOR

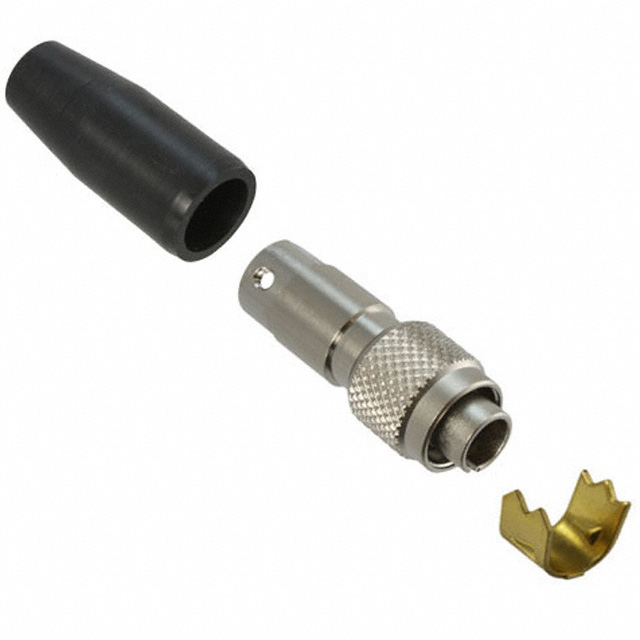

MXR-8P-8P(71)
