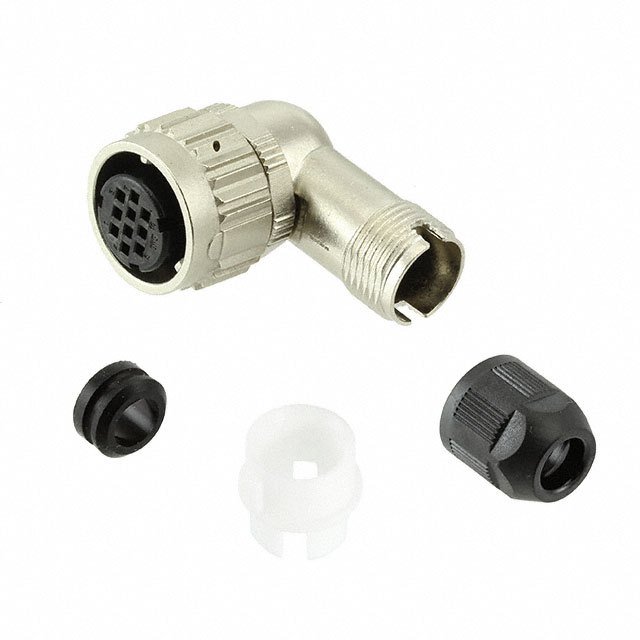

HR08D-12WLPA-10S
Circular Connectors
- Manufacturer No:
- HR08D-12WLPA-10S
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- HR08D-12WLPA-10S
- Description:
- CONN PLUG FMALE 10POS SOLDER CUP
In Stock
37 pcs On sales
$24.24
Product Parameter
- Termination
- Solder Cup
- Mounting Feature
- -
- Applications
- Industrial
- Ingress Protection
- IP67/68 - Dust Tight, Waterproof
- Shell Finish
- Nickel
- Number of Positions
- 10
- Cable Opening
- 0.224" ~ 0.256" (5.70mm ~ 6.50mm)
- Shell Size - Insert
- 12
- Mounting Type
- Free Hanging (In-Line), Right Angle
- Current Rating (Amps)
- 3A
- Color
- Black, Silver
- Connector Type
- Plug, Female Sockets
- Operating Temperature
- -20°C ~ 85°C
- Series
- HR08D
- Fastening Type
- Push-Twist
- Contact Finish - Mating
- Gold
- Features
- Backshell, Coupling Nut, Rotatable
- Shell Material
- Zinc Alloy
- Backshell Material, Plating
- Aluminum Alloy, Nickel
- Packaging
- Bulk
- Voltage Rating
- 200VAC, 250VDC
- Material Flammability Rating
- UL94 V-0
- Shielding
- Unshielded
- Insert Material
- Polyphenylene Sulfide (PPS)
- Contact Finish Thickness - Mating
- 8.00µin (0.203µm)
- Orientation
- Keyed
- Shell Size, MIL
- -
- Part Status
- Obsolete
- Contact Material
- Phosphor Bronze
