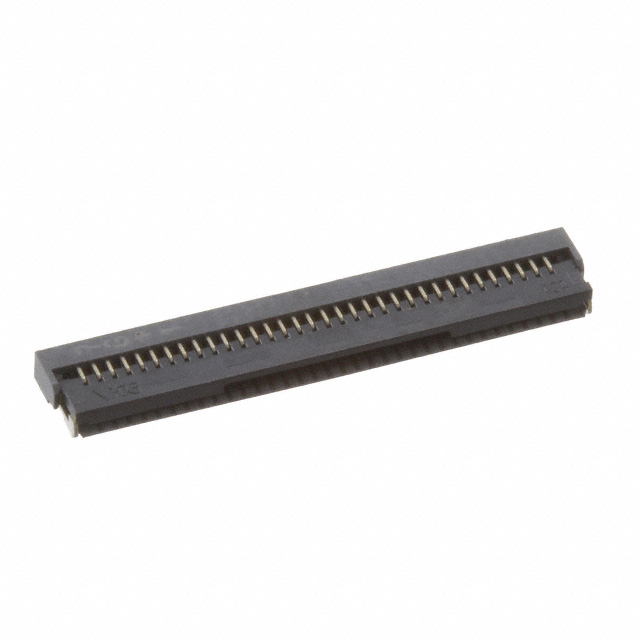

FH65-34S-0.5SH
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FH65-34S-0.5SH
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- FH65-34S-0.5SH
- Description:
- CONN FFC/FPC 34POS 0.50MM SMD R/
In Stock
0 pcs On sales
$1.09
Product Parameter
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC, FPC
- Contact Finish Thickness
- 1.18µin (0.030µm)
- Series
- FH65
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Flip Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Copper Alloy
- Part Status
- Active
- Actuator Material
- Polyphenylene Sulfide (PPS)
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Gray
- Height Above Board
- 0.047" (1.20mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 34
- Actuator Color
- Black
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Tabbed
- Operating Temperature
- -40°C ~ 125°C
