FH64MA-11S-0.25SHW(99)
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FH64MA-11S-0.25SHW(99)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- FH64MA-11S-0.25SHW(99)
- Description:
- CONN FPC 0.25MM SMD R/A 11POS
In Stock
500 pcs On sales
$2.14
Product Parameter
- Actuator Color
- Black
- Current Rating (Amps)
- 0.2A
- Cable End Type
- Notched
- Operating Temperature
- -55°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.010" (0.25mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 1.18µin (0.030µm)
- Series
- FH64MA
- Voltage Rating
- 30V
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Locking Feature
- Flip Lock, Backlock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyamide (PA), Nylon
- Termination
- Solder
- FFC, FCB Thickness
- 0.12mm
- Housing Color
- Beige
- Height Above Board
- 0.020" (0.50mm)
- Mating Cycles
- 10
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 11
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FH64MA-11S-0.25SHW(99) Relevant information
FH64MA-11S-0.25SHW
CONN FPC 0.25MM SMD R/A 11POS
FH64MA-11S-0.25SHW(99)
CONN FPC 0.25MM SMD R/A 11POS

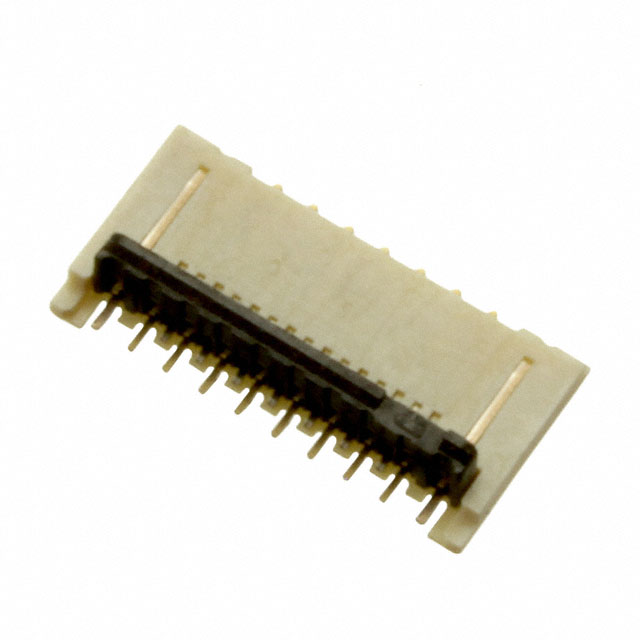

FH64MA-15S-0.25SHW
CONN FPC 0.25MM SMD R/A 15POS
FH64MA-15S-0.25SHW(99)
CONN FPC 0.25MM SMD R/A 15POS

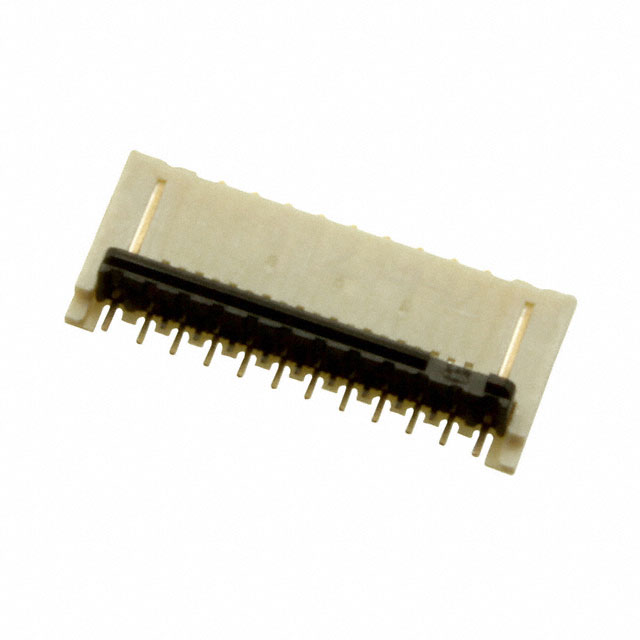

FH64MA-19S-0.25SHW
